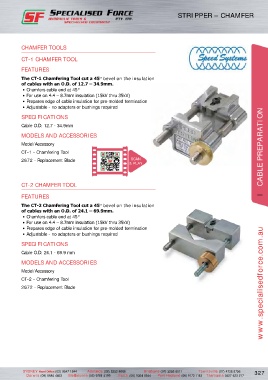

Page 339 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER – CHAMFER

CHAMFER TOOLS

CT-1 CHAMFER TOOL

FEATURES

The CT-1 Chamfering Tool cut a 45° bevel on the insulation
of cables with an O.D. of 12.7 – 34.9mm.
• Chamfers cable end at 45°
• For use on 4.4 – 8.7mm insulation (15kV thru 35kV)
• Prepares edge of cable insulation for pre-molded termination
• Adjustable - no adapters or bushings required
SPECIFICATIONS

Cable O.D. 12.7 - 34.9mm
MODELS AND ACCESSORIES

Model/Accessory
CT-1 - Chamfering Tool I CABLE PREPARATION

2672 - Replacement Blade SCAN
& PLAY

CT-2 CHAMFER TOOL

FEATURES

The CT-2 Chamfering Tool cut a 45° bevel on the insulation
of cables with an O.D. of 24.1 – 69.9mm.
• Chamfers cable end at 45°
• For use on 4.4 – 8.7mm insulation (15kV thru 35kV)
• Prepares edge of cable insulation for pre-molded termination
• Adjustable - no adapters or bushings required
SPECIFICATIONS

Cable O.D. 24.1 - 69.9 mm

MODELS AND ACCESSORIES
Model/Accessory
CT-2 - Chamfering Tool

2672 - Replacement Blade www.specialisedforce.com.au
