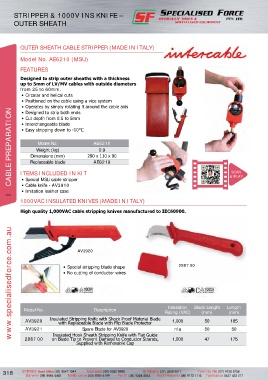

Page 330 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER & 1000V INS KNIFE –
OUTER SHEATH

OUTER SHEATH CABLE STRIPPER (MADE IN ITALY)

Model No. AE6210 (MSU)

FEATURES

Designed to strip outer sheaths with a thickness
up to 5mm of LV/MV cables with outside diameters
from 25 to 60mm.
• Circular and helical cuts
• Positioned on the cable using a vice system
• Operates by simply rotating it around the cable axis
I CABLE PREPARATION
• Designed to strip both ends
• Cut depth from 0.5 to 5mm
• Interchangeable blade
• Easy stripping down to -10°C

Model No. AE6210
Weight (kg) 0.9
Dimensions (mm) 290 x 110 x 90
Replaceable blade AE6219

ITEMS INCLUDED IN KIT & PLAY
SCAN
• Special MSU cable stripper
• Cable knife - AV3910
• Imitation leather case

1000VAC INSULATED KNIVES (MADE IN ITALY)

High quality 1,000VAC cable stripping knives manufactured to IEC60900.

www.specialisedforce.com.au

AV3920

• Special stripping blade shape 2887 00
• No cutting of conductor wires

Insulation
Model No. Description Rating (VAC) Blade Length Length
(mm)
(mm)
AV3920 Insulated Stripping Knife with Shock Proof Material Blade 1,000 50 185
with Replaceable Blade with Flip Blade Protector
AV3921 Spare Blade for AV3920 n/a 50 50
Insulated Hook Sheath Stripping Knife with Flat Guide
2887 00 on Blade Tip to Prevent Damage to Conductor Strands, 1,000 47 175
Supplied with Removable Cap
