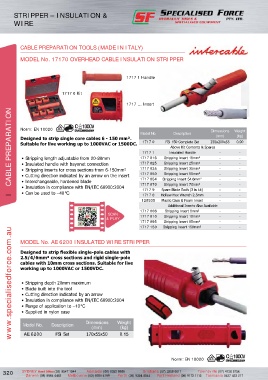

Page 332 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER – INSULATION &
WIRE

CABLE PREPARATION TOOLS (MADE IN ITALY)

MODEL No. 17170 OVERHEAD CABLE INSULATION STRIPPER

1717 1 Handle

1717 0 Kit

1717 … Insert
I CABLE PREPARATION

Norm: EN 10020 Dimensions Weight
Model No. Description
Designed to strip single core cables 6 - 150 mm². (mm) (kg)
Suitable for live working up to 1000VAC or 1500DC. 1717 0 FSI 150 Complete Set 235x200x55 0.90
Above Kit Contents & Spares
1717 1 Insulated Handle - -
• Stripping length adjustable from 20-80mm 1717 016 Stripping Insert 16mm² - -
• Insulated handle with bayonet connection 1717 025 Stripping Insert 25mm² - -
• Stripping inserts for cross sections from 6-150mm² 1717 035 Stripping Insert 35mm² - -
• Cutting direction indicated by an arrow on the insert 1717 050 Stripping Insert 50mm² - -
• Interchangeable, hardened blade 1717 054 Stripping Insert 54.6mm² - -
Stripping Insert 70mm²
• Insulation in compliance with EN/IEC 60900:2004 1717 070 Spare Blade Each (3 in kit) - - - -
1717 9
• Can be used to –40°C 1717 0 Hollow Hex Wrench 2.5mm - -
128935 Plastic Case & Foam Insert - -
Additional Inserts Also Available
1717 006 Stripping Insert 6mm² - -
SCAN
& PLAY 1717 010 Stripping Insert 10mm² - -
1717 095 Stripping Insert 95mm² - -
1717 150 Stripping Insert 150mm² - -
www.specialisedforce.com.au

MODEL No. AE 6200 INSULATED WIRE STRIPPER

Designed to strip flexible single-pole cables with
2.5/4/6mm² cross sections and rigid single-pole
cables with 10mm cross sections. Suitable for live
working up to 1000VAC or 1500VDC.

• Stripping depth 20mm maximum
• Blade built into the tool
• Cutting direction indicated by an arrow
• Insulation in compliance with EN/IEC 60900:2004
• Range of application to –10°C
• Supplied in nylon case

Model No. Description Dimensions Weight
(mm) (kg)
AE 6200 FSI Set 170x55x50 0.15

Norm: EN 10020
