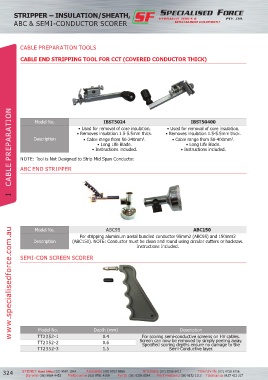

Page 336 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER – INSULATION/SHEATH,
ABC & SEMI-CONDUCTOR SCORER

CABLE PREPARATION TOOLS

CABLE END STRIPPING TOOL FOR CCT (COVERED CONDUCTOR THICK)

I CABLE PREPARATION

Model No. IBST5024 IBST50400
• Used for removal of core insulation. • Used for removal of core insulation.
• Removes insulation 1.5-5.5mm thick. • Removes insulation 1.5-5.5mm thick.
Description • Cable range from 50-240mm². • Cable range from 50-400mm².
• Long Life Blade. • Long Life Blade.
• Instructions included. • Instructions included.

NOTE: Tool is Not Designed to Strip Mid Span Conductor.

ABC END STRIPPER

www.specialisedforce.com.au
Model No. ABC95 ABC150
For stripping aluminium aerial bundled conductor 95mm2 (ABC95) and 150mm2
Description (ABC150). NOTE: Conductor must be clean and round using circular cutters or hacksaw.
Instructions Included.

SEMI-CON SCREEN SCORER

Model No. Depth (mm) Description
TT2352-1 0.4 For scoring semi-conductive screens on HV cables.
TT2352-2 0.6 Screen can now be removed by simply peeling away.
Specified scoring depths ensure no damage to the
TT2352-3 1.5 Semi-Conductive layer.
