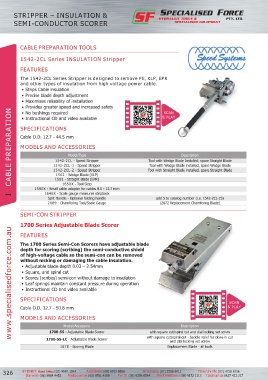

Page 338 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER – INSULATION &
SEMI-CONDUCTOR SCORER

CABLE PREPARATION TOOLS

1542-2CL Series INSULATION Stripper

FEATURES

The 1542-2CL Series Stripper is designed to remove PE, XLP, EPR
and other types of insulation from high voltage power cable.
• Strips Cable insulation
• Precise blade depth adjustment
• Maximises reliability of installation
• Provides greater speed and increased safety
I CABLE PREPARATION
• No bushings required SCAN
• Instructional CD and video available & PLAY

SPECIFICATIONS
Cable O.D. 12.7 - 44.5 mm

MOdELS ANd ACCESSORIES
Model/Type Description
1542-2CL - Speed Stripper Tool with Wedge Blade Installed, spare Straight Blade
1542-2CL-1 - Speed Stripper Tool with Wedge Blade installed, spare Wedge Blade
1542-2CL-2 - Speed Stripper Tool with Straight Blade installed, spare Straight Blade
1562 - Wedge Blade (XLP)
1581 - Straight Blade (EPR)
1650X - Tool Stop
1590X - Small cable adapter for cables 8.0 - 12.7 mm
1646X - Scale gauge measures stripback
Split Handle - Optional folding handle add S to catalog number (i.e. 1542-2CL-1S)
2689 - Chamfering Tool/Scale Gauge (2672 Replacement Chamfering Blade)
SEMI-CON STRIPPER

1700 Series Adjustable Blade Scorer
www.specialisedforce.com.au
FEATURES

The 1700 Series Semi-Con Scorers have adjustable blade
depth for scoring (scribing) the semi-conductive shield
of high-voltage cable so the semi-con can be removed
without nicking or damaging the cable insulation.
• Adjustable blade depth 0.03 – 2.54mm
• Square, and spiral cut
• Scores (scribes) semi-con without damage to insulation
• Leaf springs maintain constant pressure during operation
• Instructional CD and video available

SPECIFICATIONS
SCAN
Cable O.D. 12.7 - 50.8 mm & PLAY

MODELS AND ACCESSORIES

Model/Accessory Description
1700-SS - Adjustable Blade Scorer with square cut/spiral cut and dial locking set screw
1700-SS-LC - Adjustable Blade Scorer with square cut/spiral cut - Saddle relief for close-in cut
and dial locking set screw
1678 - Scoring Blade Replacement Blade - all tools
