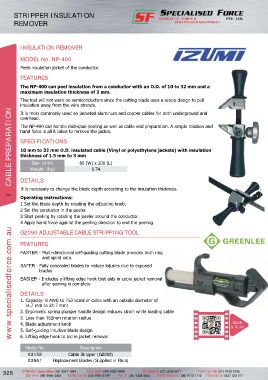

Page 340 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER INSULATION
REMOVER

INSULATION REMOVER

MODEL No. NP-400

Peels insulation jacket of the conductor.
FEATURES

The NP-400 can peel insulation from a conductor with an O.D. of 10 to 32 mm and a
maximum insulation thickness of 3 mm.
This tool will not work on semiconductors since the cutting blade uses a scoop design to pull
insulation away from the wire strands.
I CABLE PREPARATION
It is most commonly used on jacketed aluminum and copper cables for both underground and
overhead.
The NP-400 can handle mid-span peeling as well as cable end preparation. A simple rotation and
hand force is all it takes to remove the jacket.
SPECIFICATIONS

10 mm to 32 mm O.D. insulated cable (Vinyl or polyethylene jackets) with insulation
thickness of 1.5 mm to 3 mm
Size (mm) 80 (W) x 200 (L)
Weight (kg) 0.74

DETAILS

It is necessary to change the blade depth according to the insulation thickness.
Operating instructions:
1 Set the blade depth by rotating the adjusting knob.
2 Set the conductor in the peeler.
3 Start peeling by rotating the peeler around the conductor.
4 Apply hand force against the peeling direction to end the peeling.
www.specialisedforce.com.au
G2090 ADJUSTABLE CABLE STRIPPING TOOL
FEATURES

FASTER - Multi-directional self-guiding cutting blade provides both ring
and spiral cuts.

SAFER - Fully concealed blades to reduce injuries due to exposed
blades
EASIER - Includes a lifting edge hook that aids in cable jacket removal
after scoring is complete
DETAILS
1. Capacity: 8 AWG to 750 kcmil or cable with an outside diameter of
(4.7 mm to 31.7 mm)
2. Ergonomic spring plunger handle design reduces strain while loading cable
3. Less than 152mm rotation radius
SCAN
4. Blade adjustment knob & PLAY
5. Self-guiding intuitive blade design
6. Lifting edge hook to aid in jacket removal

Model No. Description
03158 Cable Stripper (G2090)
03961 Replacement Blades (Supplied in Pairs)
