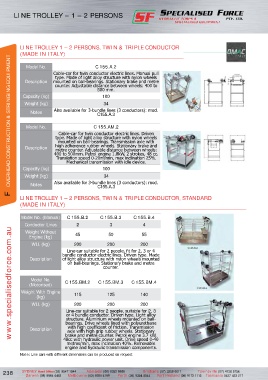

Page 248 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

LINE TROLLEY – 1 – 2 PERSONS

LINE TROLLEY 1 – 2 PERSONS, TWIN & TRIPLE CONDUCTOR
(MADE IN ITALY)
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

Model No. C 155.A.2
Cable-car for twin conductor electric lines. Manual pull
type. Made of light alloy structure with nylon wheels
Description mounted on ball-bearings. Stationary brake and metre
counter. Adjustable distance between wheels: 400 to
500 mm.
Capacity (kg) 100
Weight (kg) 34
Notes Also available for 3-bundle lines (3 conductors): mod.
C155.A.3

Model No. C 155.AM.2
Cable-car for twin conductor electric lines. Driven
type. Made of light alloy structure with nylon wheels
mounted on ball-bearings. Transmission axle with
Description high adherence rubber wheels. Stationary brake and
metre counter. Adjustable distance between wheels:
400 to 500mm. Petrol engine 1.8kW, 2 strokes, 48 cc.
Translation speed 0-20m/min, max inclination 25%.
Mechanical transmission with idle device.
Capacity (kg) 100
Weight (kg) 34
Notes Also available for 3-bundle lines (3 conductors): mod.
C155.A.3

LINE TROLLEY 1 – 2 PERSONS, TWIN & TRIPLE CONDUCTOR, STANDARD
(MADE IN ITALY)

Model No. (Manual) C 155.B.2 C 155.B.3 C 155.B.4
Conductor Lines 2 3 4
www.specialisedforce.com.au
Weight Without
Engine (kg) 45 50 55
WLL (kg) 200 200 200
Line-car suitable for 2 people, fit for 2, 3 or 4
bundle conductor electric lines. Driven type. Made
Description of light alloy structure with nylon wheels mounted
on ball-bearings. Stationary brake and metre
counter.

Model No.
(Motorised) C 155.BM.2 C 155.BM.3 C 155.BM.4
Weight With Engine
(kg) 115 125 140
WLL (kg) 200 200 200
Line-car suitable for 2 people, suitable for 2, 3
or 4 bundle conductor. Driven type. Light alloy
structure. Aluminium wheels mounted on ball-
bearings. Drive wheels lined with polyurethane
with high coefficient of friction. Transmission
Description axle with high grip rubber wheels. Stationary
brake and metre counter. Petrol engine 3.7 kW,
48cc with hydraulic power unit. Drive speed 0-40
metres/min, max inclination 40%. Removable
engine and hydraulic transmission components.

Note: Line cars with different dimensions can be produced on request
