COUNTERWEIGHT – OPGW

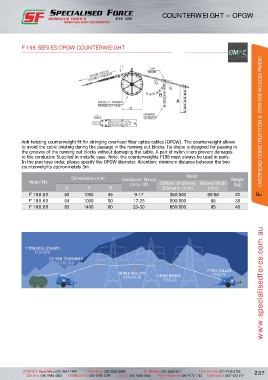

F 198 SERIES OPGW COUNTERWEIGHT

C

B
A

Anti-twisting counterweight fit for stringing overhead fiber optics cables (OPGW). The counterweight allows F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
to avoid the cable twisting during the passage in the running out blocks. Its shape is designed for passing in
the grooves of the running out blocks without damaging the cable. A pair of nylon liners prevent damages
to the conductor. Supplied in metallic case. Note: the counterweights F198 must always be used in pairs.
In the purchase order, please specify the OPGW diameter. Attention: minimum distance between the two
counterweights approximately 3m.

Dimensions (mm) Conductor Range Roller Weight
Model No. (mm) OD Bottom of Groove Groove Width (kg)
D A B Diameter (mm) (mm)
F 198.50 50 1000 35 9-17 350/500 60/68 22
F 198.60 64 1000 50 17-23 500/800 68 38
F 198.88 80 1400 60 23-30 650/800 95 46 www.specialisedforce.com.au
