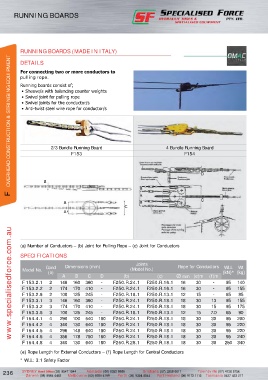

Page 246 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

RUNNING BOARDS

RUNNING BOARDS (MADE IN ITALY)
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
DETAILS

For connecting two or more conductors to
pulling rope.

Running boards consist of;
• Sheave/s with balancing counter weights
• Swivel joint for pulling rope
• Swivel joints for the conductor/s
• Anti-twist steel wire rope for conductor/s

2/3 Bundle Running Board 4 Bundle Running Board
F153 F154

D

B
B
A
A B C
C
A

www.specialisedforce.com.au

(a) Number of Conductors – (b) Joint for Pulling Rope – (c) Joint for Conductors

SPECIFICATIONS
Joints Rope for Conductors
Dimensions (mm)
WLL Wt
Model No. Cond (Model No.) (kN)* (kg)
(a)
A B C D (b) (c) mm (e)m (f)m
F 153.2.1 2 146 160 360 - F250.R.24.1 F250.R.16.1 16 30 - 95 140
F 153.2.2 2 174 170 410 - F250.R.24.1 F250.R.16.1 16 30 - 95 155
F 153.2.6 2 100 125 245 - F250.R.18.1 F250.R.13.1 12 15 - 65 85
F 153.3.1 3 146 160 360 - F250.R.24.1 F250.R.18.1 18 30 13 95 155
F 153.3.2 3 174 170 410 - F250.R.24.1 F250.R.18.1 18 30 15 95 175
F 153.3.6 3 100 125 245 - F250.R.18.1 F250.R.13.1 12 15 7.0 65 90
F 154.4.1 4 290 100 540 160 F250.R.24.1 F250.R.18.1 18 30 30 95 200
F 154.4.2 4 340 130 640 160 F250.R.24.1 F250.R.18.1 18 30 30 95 220
F 154.4.5 4 296 148 640 160 F250.R.24.1 F250.R.18.1 18 30 30 95 220
F 154.4.6 4 356 178 760 160 F250.R.24.1 F250.R.18.1 18 30 30 95 240
F 154.4.8 4 340 130 640 180 F250.R.28.1 F250.R.18.1 18 30 30 250 340

(e) Rope Length for External Conductors – (f) Rope Length for Central Conductors
* WLL: 3:1 Safety Factor
