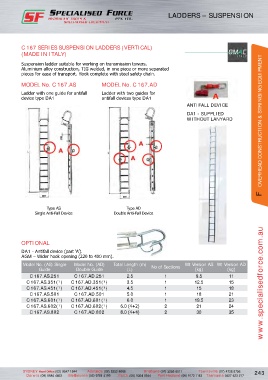

Page 253 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

LADDERS – SUSPENSION

C 167 SERIES SUSPENSION LADDERS (VERTICAL)
(MADE IN ITALY)

Suspension ladder suitable for working on transmission towers.
Aluminium alloy construction, TIG welded, in one piece or more separated
pieces for ease of transport. Hook complete with steel safety chain.
MODEL No. C 167.AS MODEL No. C 167.AD

Ladder with one guide for antifall Ladder with two guides for
device type DA1 antifall devices type DA1
ANTIFALL DEVICE

DA1 - SUPPLIED
WITHOUT LANYARD F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

Type AS Type AD
Single Anti-Fall Device Double Anti-Fall Device

OPTIONAL

DA1 - Antifall device (part ‘A’).
AGM – Wider hook opening (220 to 400 mm).
Model No. (AS) Single Model No. (AD) Total Length (m) Wt Version AS Wt Version AD
Guide Double Guide (L) No of Sections (kg) (kg)
C 167.AS.251 C 167.AD.251 2.5 1 9.5 11
C 167.AS.351(¹) C 167.AD.351(¹) 3.5 1 12.5 15 www.specialisedforce.com.au
C 167.AS.451(¹) C 167.AD.451(¹) 4.5 1 15 18
C 167.AS.501 C 167.AD.501 5.0 1 18 21
C 167.AS.601(¹) C 167.AD.601(¹) 6.0 1 19.5 23
C 167.AS.602(¹) C 167.AD.602(¹) 6.0 (4+2) 2 21 24
C 167.AS.802 C 167.AD.802 8.0 (4+4) 2 30 35
