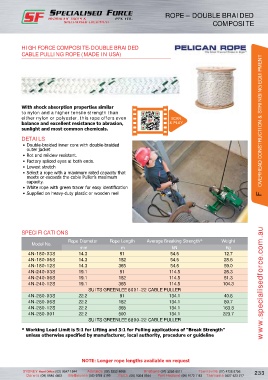

Page 243 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ROPE – DOUBLE BRAIDED
COMPOSITE

HIGH FORCE COMPOSITE-DOUBLE BRAIDED
CABLE PULLING ROPE (MADE IN USA)

With shock absorption properties similar
to nylon and a higher tensile strength than
either nylon or polyester, this rope offers even SCAN
balance and excellent resistance to abrasion, & PLAY F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
sunlight and most common chemicals.
DETAILS
• Double-braided inner core with double-braided
outer jacket
• Rot and mildew resistant.
• Factory spliced eyes at both ends.
• Lowest stretch
• Select a rope with a maximum rated capacity that
meets or exceeds the cable Puller’s maximum
capacity.
• White rope with green tracer for easy identification
• Supplied on heavy-duty plastic or wooden reel

SPECIFICATIONS

Rope Diameter Rope Length Average Breaking Strength* Weight
Model No.
mm m kN Kg
4N-180-03S 14.3 91 54.6 12.7
4N-180-06S 14.3 182 54.6 28.6
4N-180-12S 14.3 365 54.6 59.0
4N-240-03S 19.1 91 114.5 26.3
4N-240-06S 19.1 182 114.5 51.3
4N-240-12S 19.1 365 114.5 104.3 www.specialisedforce.com.au
SUITS GREENLEE 6001-22 CABLE PULLER
4N-280-03S 22.2 91 134.1 40.8
4N-280-06S 22.2 182 134.1 80.7
4N-280-12S 22.2 365 134.1 163.3
4N-280-001 22.2 500 134.1 223.7
SUITS GREENLEE 6800-22 CABLE PULLER
* Working Load Limit is 5:1 for Lifting and 3:1 for Pulling applications of “Break Strength”
unless otherwise specified by manufacturer, local authority, procedure or guideline

NOTE: Longer rope lengths available on request
