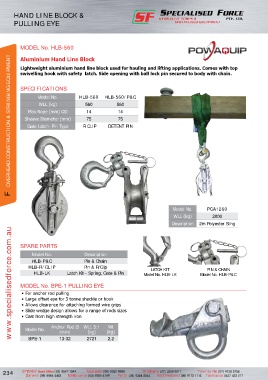

Page 244 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HAND LINE BLOCK &
PULLING EYE

MODEL No. HLB-560

F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
Aluminium Hand Line Block
Lightweight aluminium hand line block used for hauling and lifting applications. Comes with top
swivelling hook with safety latch. Side opening with ball lock pin secured to body with chain.

SPECIFICATIONS
Model No. HLB-560 HLB-560/P&C
WLL (kg) 560 560
Max Rope (mm) OD 14 14
Sheave Diameter (mm) 75 75
Gate Latch- Pin Type R CLIP DETENT PIN

Model No. PCA1260
WLL (kg) 2000
Description 2m Polyester Sling
www.specialisedforce.com.au

SPARE PARTS

Model No. Description
HLB-P&C Pin & Chain
HLB-R/CLIP Pin & R/Clip LATCH KIT PIN & CHAIN
HLB-LK Latch Kit - Spring, Gate & Pin Model No. HLB-LK Model No. HLB-P&C

MODEL No. BPE-1 PULLING EYE
• For anchor rod pulling
• Large offset eye for 3 tonne shackle or hook
• Allows clearance for attaching formed wire grips
• Slide wedge design allows for a range of rods sizes
• Cast from high strength iron

Model No. Anchor Rod Ø WLL 5:1 Wt
(mm) (kg) (kg)
BPE-1 13-32 2721 2.2
