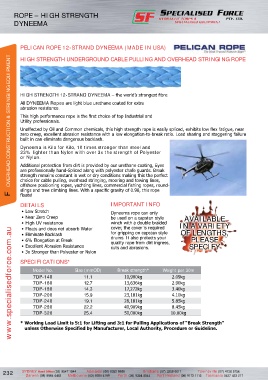

Page 242 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ROPE – HIGH STRENGTH
DYNEEMA

PELICAN ROPE 12-STRAND DYNEEMA (MADE IN USA)

F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
HIGH STRENGTH UNDERGROUND CABLE PULLING AND OVERHEAD STRINGING ROPE

HIGH STRENGTH 12-STRAND DYNEEMA – the world’s strongest fibre
All DYNEEMA Ropes are light blue urethane coated for extra
abrasion resistance.
This high performance rope is the first choice of top Industrial and
Utility professionals.
Unaffected by Oil and Common chemicals, this high strength rope is easily spliced, exhibits low flex fatigue, near
zero creep, excellent abrasion resistance with a low elongation-to-break ratio. Load sharing and staggering failure
built in can eliminate dangerous backlash.
Dyneema is Kilo for Kilo, 10 times stronger than steel and
33% lighter than Nylon with over 3x the strength of Polyester
or Nylon.
Additional protection from dirt is provided by our urethane coating, Eyes
are professionally hand-Spliced along with polyester chafe guards. Break
strength remains constant in wet or dry conditions making this the perfect
choice for cable pulling, overhead stringing, mooring and towing lines,
offshore positioning ropes, yachting lines, commercial fishing ropes, round-
slings and tree climbing lines. With a specific gravity of 0.98, this rope
floats!

DETAILS IMPORTANT INFO
• Low Stretch Dyneema rope can only
• Near Zero Creep be used on a capstan style AVAILABLE
• High UV resistance winch with a double braided IN A VARIETY
• Floats and does not absorb Water cover, the cover is required
www.specialisedforce.com.au
• Eliminate Backlash for gripping on capstan style OF LENGTHS,
• 6% Elongation at Break drums. It also protects your PLEASE
quality rope from dirt ingress,
• Excellent Abrasion Resistance cuts and abrasions. SPECIFY
• 3x Stronger than Polyester or Nylon

SPECIFICATIONS*
Model No. Size (mmOD) Break strength* Weight per 30m
7DP-140 11.1 10,900kg 2.09kg
7DP-160 12.7 13,636kg 2.90kg
7DP-180 14.3 17,272kg 3.40kg
7DP-200 15.9 23,181kg 4.10kg
7DP-240 19.1 28,181kg 5.85kg
7DP-280 22.2 40,909kg 8.45kg
7DP-320 25.4 50,000kg 10.00kg
* Working Load Limit is 5:1 for Lifting and 3:1 for Pulling Applications of “Break Strength”
unless Otherwise Specified by Manufacturer, Local Authority, Procedure or Guideline.
