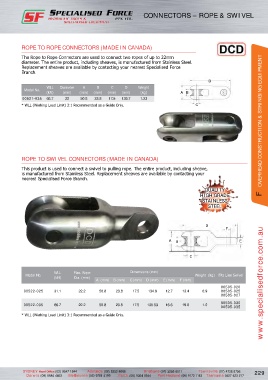

Page 239 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

CONNECTORS – ROPE & SWIVEL

ROPE TO ROPE CONNECTORS (MADE IN CANADA)

The Rope to Rope Connectors are used to connect two ropes of up to 22mm
diameter. The entire product, including sheaves, is manufactured from Stainless Steel.
Replacement sheaves are available by contacting your nearest Specialised Force
Branch.

D
WLL Diameter A B C D Weight
Model No.
(kN) (mm) (mm) (mm) (mm) (mm) (kg) A B
00521-035 66.7 22 50.8 23.8 17.5 139.7 1.23
* WLL (Working Load Limit) 3:1 Recommended as a Guide Only. C F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

ROPE TO SWIVEL CONNECTORS (MADE IN CANADA)

This product is used to connect a swivel to pulling rope. The entire product, including sheave,
is manufactured from Stainless Steel. Replacement sheaves are available by contacting your
nearest Specialised Force Branch.

QUALITY
HIGH GRADE
STAINLESS
STEEL

D
F

A B E

C

WLL Max. Rope Dimensions (mm)
Model No. Weight (kg) Fits Line Swivel
(kN) Dia. (mm)
A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
00505-020 www.specialisedforce.com.au
00522-025 31.1 22.2 50.8 23.8 17.5 134.9 12.7 13.4 0.9 00505-025
00505-027
00505-030
00522-035 66.7 22.2 50.8 23.8 17.5 136.53 16.6 19.0 1.0
00505-035
* WLL (Working Load Limit) 3:1 Recommended as a Guide Only.
