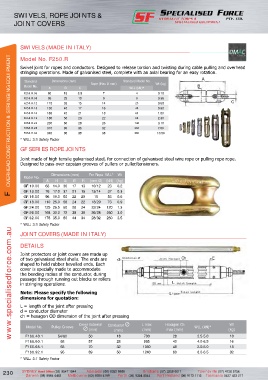

SWIVELS, ROPE JOINTS &
JOINT COVERS

SWIVELS (MADE IN ITALY)

F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
Model No. F250.R
Swivel joint for ropes and conductors. Designed to release torsion and twisting during cable pulling and overhead
stringing operations. Made of galvanised steel, complete with an axial bearing for an easy rotation.
A
Standard Dimensions (mm) Standard Model No.
Model No. A B C Rope (Max Ø mm) WLL (kN)* Wt (kg) B
F250.R.06 60 18 8.5 7 4 0.10
F250.R.08 95 25 10 9 8 0.36
F250.R.12 118 33 15 14 25 0.60 C
F250.R.13 130 40 17 16 40 0.90
F250.R.16 165 45 21 18 63 1.50
F250.R.18 180 50 23 22 80 2.30
F250.R.24 230 60 28 26 130 3.10
F250.R.28 310 80 36 32 260 7.00
F250.R.32 345 85 38 38 280 10.50
* WLL: 3:1 Safety Factor
GF SERIES ROPE JOINTS

Joint made of high tensile galvanised steel, for connection of galvanised steel wire rope or pulling rope rope.
Designed to pass over capstan grooves of pullers or puller/tensioners.

Dimensions (mm) For Rope WLL* Wt
Model No.
A H B Ø R (mm Ø) (kN) (kg)
GF.10.00 68 14.0 36 17 13 10/12 23 0.2
GF.13.00 76 17.0 37 21 15 13/14 37 0.3
GF.16.00 96 19.0 50 22 20 16 53 0.6
GF.18.00 110 25.0 56 24 22 18/20 73 0.9
GF.24.00 125 26.5 60 28 24 22/24 120 1.3
GF.26.00 168 30.0 72 38 30 26/28 250 3.0
GF.32.00 178 35.0 80 44 34 28/32 280 3.5
* WLL: 3:1 Safety Factor
www.specialisedforce.com.au
JOINT COVERS (MADE IN ITALY)

DETAILS

Joint protectors or joint covers are made up
of two galvanised steel shells. The ends are d Ch E
shaped to hold rubber bevelled ends. Each
cover is specially made to accommodate
the bending radius of the conductor, during
passage through running out blocks or rollers
in stringing operations. L
Note: Please specify the following L
dimensions for quotation:
L = length of the joint after pressing
d = conductor diameter
ch = hexagon OD dimension of the joint after pressing
Cover External Conductor L max Hexagon Ch Wt
Model No. Pulley Groove WLL (kN)*
(mm) (mm) (mm) max (mm) (kg)
F166.40.1 54/60 50 18 700 28 2.5-5.0 10
F166.60.1 68 57 28 995 40 4.0-6.5 16
F166.65.1 68 70 32 1080 48 2.0-5.0 18
F166.92.1 95 89 50 1240 60 6.0-6.5 32
* WLL: 3:1 Safety Factor
