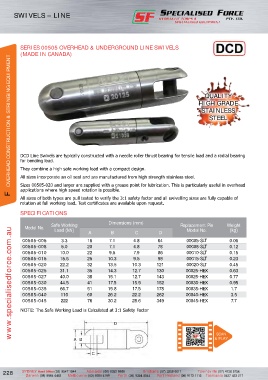

Page 238 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SWIVELS – LINE

SERIES 00505 OVERHEAD & UNDERGROUND LINE SWIVELS
(MADE IN CANADA)
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

QUALITY
HIGH GRADE
STAINLESS

STEEL

DCD Line Swivels are typically constructed with a needle roller thrust bearing for tensile load and a radial bearing
for bending load.
They combine a high safe working load with a compact design.
All sizes incorporate an oil seal and are manufactured from high strength stainless steel.
Sizes 00505-020 and larger are supplied with a grease point for lubrication. This is particularly useful in overhead
applications where high speed rotation is possible.
All sizes of both types are pull tested to verify the 3:1 safety factor and all swivelling sizes are fully capable of
rotation at full working load. Test certificates are available upon request.

SPECIFICATIONS

Safe Working Dimensions (mm) Replacement Pin Weight
Model No. Load (kN) Model No. (kg)
www.specialisedforce.com.au
A B C D
00505-005 3.3 16 7.1 4.8 64 00005-SLT 0.06
00505-008 5.0 20 7.1 4.8 78 00008-SLT 0.12
00505-010 10.0 22 9.5 7.9 86 00010-SLT 0.15
00505-015 15.6 25 10.3 9.5 98 00015-SLT 0.23
00505-020 22.2 32 13.5 10.3 121 00020-SLT 0.45
00505-025 31.1 35 14.3 12.7 130 00025-HEX 0.63
00505-027 40.0 38 15.1 12.7 143 00025-HEX 0.77
00505-030 44.5 41 17.5 15.9 152 00030-HEX 0.95
00505-035 66.7 51 19.8 17.5 178 00035-HEX 1.7
00505-040 110 60 26.2 22.2 262 00040-HEX 3.5
00505-045 222 76 30.2 28.6 349 00045-HEX 7.7

NOTE: The Safe Working Load is Calculated at 3:1 Safety Factor

D

SCAN
A B & PLAY

C
