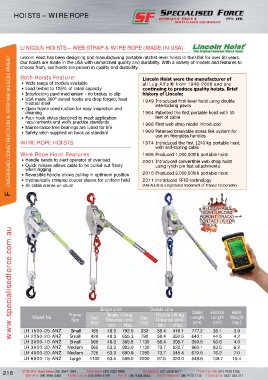

Page 228 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HOISTS – WIRE ROPE

LINCOLN HOISTS – WEB STRAP & WIRE ROPE (MADE IN USA)

Lincoln Hoist has been designing and manufacturing portable ratchet lever hoists in the USA for over 60 years.
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
Our hoists are made in the USA with unmatched quality and durability. With a variety of models and features to
choose from, our hoists are proven in quality and durability .
Both Hoists Feature: Lincoln Hoist were the manufacturer of
• Wide range of models available all Lug-All’s ® from 1948-2008 and are
• Load tested to 125% of rated capacity continuing to produce quality hoists. Brief
• Interlocking pawl mechanism - no brakes to slip history of Lincoln;
• USA made 360° swivel hooks are drop forged, heat 1949 Introduced first lever hoist using double
treated steel interlocking pawls
• Open frame construction for easy inspection and
cleaning 1964 Patented the first portable hoist with 50
• Four hook styles designed to meet application feet of cable
requirements and work practice standards 1966 First web strap model introduced
• Maintenance free bearings are lubed for life
• Safety latch supplied on hook as standard 1969 Patented breakable stress link system for
use on fiberglass handles
WIRE ROPE HOISTS 1974 Introduced the first 1240 kg portable hoist
with self-storing cable
Wire Rope Hoist Features: 1986 Produced 1,000,000th portable hoist
• Handle bends to alert operator of overload 2001 Introduced convertible web strap hoist
• Quick release allows cable to be pulled out freely using lynch pin fast attachments
when rigging
• Reversible handle allows pulling in optimum position 2010 Produced 2,000,000th portable hoist
• Hydraulically crimped copper sleeve for uniform hold 2011 Introduced RFID technology
• All cable stores on drum LUG-ALL® is a registered trademark of Transol Corporation

RFID CAPABLE
(SCAN, UPLOAD,
REPORT, TRACK)
CONTACT US FOR
MORE INFO
www.specialisedforce.com.au

Single Line Double Line Cable Handle Hoist
Model No. Frame Cap. Single Lifting Cap. Double Lifting Length Length Weight
Size Distance (cm) Distance (cm)
(kg) (kg) (cm) (cm) (kg.)
Min Max Min Max
LH 1500-25-ANZ Small 165 48.3 792.5 330 58.4 419.1 777.2 38.1 3.9
LH 2250-20-ANZ Small 420 48.3 655.3 790 58.4 350.5 640.1 44.5 4.2
LH 3000-10-ANZ Small 565 48.3 365.8 1130 58.4 205.7 350.5 50.8 4.0
LH 3000-30-ANZ Medium 565 53.3 983.0 1130 73.7 520.7 960.1 63.5 6.2
LH 4000-20-ANZ Medium 725 53.3 690.9 1290 73.7 345.4 670.5 76.2 7.0
LH 6000-15-ANZ Large 1100 63.5 569.0 2200 87.6 320.0 548.6 139.7 15.4
