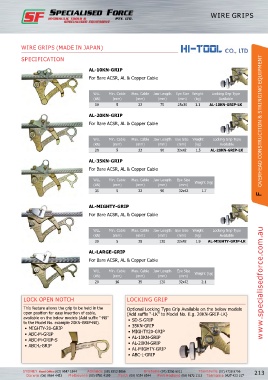

Page 223 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WIRE GRIPS

WIRE GRIPS (MADE IN JAPAN)

SPECIFICATION

AL-10KN-GRIP

For Bare ACSR, AL & Copper Cable

WLL Min. Cable Max. Cable Jaw Length Eye Size Weight Locking Grip Type
(kN) (mm) (mm) (mm) (mm) (kg) Available
10 5 22 70 25x30 1.1 AL-10KN-GRIP-LK

AL-20KN-GRIP
For Bare ACSR, AL & Copper Cable F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

WLL Min. Cable Max. Cable Jaw Length Eye Size Weight Locking Grip Type
(kN) (mm) (mm) (mm) (mm) (kg) Available
20 5 22 90 32x42 1.5 AL-20KN-GRIP-LK

AL-35KN-GRIP
For Bare ACSR, AL & Copper Cable

WLL Min. Cable Max. Cable Jaw Length Eye Size
(kN) (mm) (mm) (mm) (mm) Weight (kg)
35 5 22 90 32x42 1.7

AL-MIGHTY-GRIP

For Bare ACSR, AL & Copper Cable

WLL Min. Cable Max. Cable Jaw Length Eye Size Weight Locking Grip Type
(kN) (mm) (mm) (mm) (mm) (kg) Available
20 5 28 120 32x42 1.9 AL-MIGHTY-GRIP-LK

AL-LARGE-GRIP
For Bare ACSR, AL & Copper Cable

WLL Min. Cable Max. Cable Jaw Length Eye Size Weight (kg)
(kN) (mm) (mm) (mm) (mm)
20 16 35 120 32x42 2.1 www.specialisedforce.com.au

LOCK OPEN NOTCH LOCKING GRIP
This feature allows the grip to be held in the Optional Locking Type Grip Available on the below models
open position for easy insertion of cable, (Add suffix “-LK” to Model No. E.g. 20KN-GRIP-LK)
available on the below models (Add suffix “-NS” • SD-S-GRIP
to the Model No. example 20KN-GRIP-NS).
• MIGHTy-20-GRIP • 35KN-GRIP
• ABC-M-GRIP • MIGHTy20-GRIP
• ABC-M-GRIP-S • AL-10KN-GRIP
• ABC-L-GRIP • AL-20KN-GRIP
• AL-MIGHTy-GRIP
• ABC-L-GRIP
