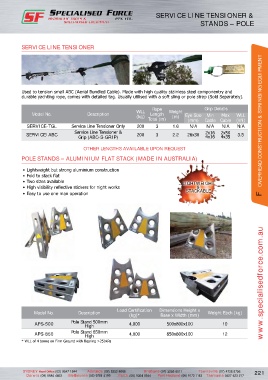

Page 231 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SERVICE LINE TENSIONER &
STANDS – POLE

SERVICE LINE TENSIONER

Used to tension small ABC (Aerial Bundled Cable). Made with high quality stainless steel componentry and
durable yachting rope, comes with detailed tag. Usually utilised with a soft sling or pole strap (Sold Separately).

WLL Rope Weight Grip Details
Model No. Description Length Eye Size Min Max WLL
(kg) Total (m) (m) (mm) Cable Cable (kN)
SERVICE-TGL Service Line Tensioner Only 200 3 1.6 N/A N/A N/A N/A F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
SERVICE/ABC Service Line Tensioner & 200 3 2.2 26x30 2x16 2x50 3.5
Grip (ABC-S-GRIP) 4x16 4x35

OTHER LENGTHS AVAILABLE UPON REQUEST

POLE STANDS – ALUMINIUM FLAT STACK (MADE IN AUSTRALIA)

• Lightweight but strong aluminium construction
• Fold to stack flat
• Two sizes available LIGHTWEIGHT
• High visibility reflective stickers for night works &
• Easy to use one man operation STACKABLE

Model No. Description Load Certification Dimensions Height x Weight Each (kg) www.specialisedforce.com.au
(kg)* Base x Width (mm)
APS-500 Pole Stand 500mm 4,000 500x800x100 10
High
APS-850 Pole Stand 850mm 4,000 850x800x100 12
High
* WLL of 4 tonne on Firm Ground with Bearing >250kPa
