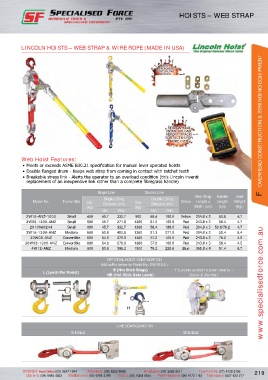

Page 229 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HOISTS – WEB STRAP

LINCOLN HOISTS – WEB STRAP & WIRE ROPE (MADE IN USA)

EASILY
REPLACABLE
STRESS LINK
AVOIDS
DAMAGING
HOIST BY
OVERLOADING

RFID CAPABLE F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
(SCAN, UPLOAD,
REPORT, TRACK)
CONTACT US FOR
MORE INFO

Web Hoist Features:
• Meets or exceeds ASME B30.21 specification for manual lever operated hoists
• Double flanged drum - Keeps web strap from coming in contact with ratchet teeth
• Breakable stress link - Alerts the operator to an overload condition (this Lincoln invention enables field
replacement of an inexpensive link rather than a complete fibreglass handle)

Single Line Double Line
Web Strap Handle Hoist
Single Lifting Double Lifting
Model No. Frame Size Cap. Distance (cm) Cap. Distance (cm) Colour Length x Length Weight
(kg) (kg) Width (cm) (cm) (kg.)
Min Max Min Max
2W10-ANZ-1000 Small 450 45.7 332.7 900 58.4 188.0 Yellow 304.8 x 3 50.8 4.7
3W08-1300-ANZ Small 680 45.7 271.8 1360 61.0 160.0 Red 243.8 x 3 58.4 4.7
2010060244 Small 680 45.7 332.7 1360 58.4 188.0 Red 304.8 x 3 50.8/76.2 4.7
3W15-1300-ANZ Medium 680 50.8 482.6 1360 81.3 271.8 Red 304.8 x 3 58.4 6.4
30W08-ANZ Convertible 680 54.6 276.9 1360 57.2 160.0 Red 243.8 x 3 76.2 4.5
30W08-1300-ANZ Convertible 680 54.6 276.9 1360 57.2 160.0 Red 243.8 x 3 58.4 4.5
4W12-ANZ Medium 900 50.8 396.2 1800 76.2 228.6 Blue 365.8 x 4 91.4 6.7

OPTIONAL HOIST CONFIGRATION
Add suffix below to Model No. 2W10S-L)
B (Hot Stick Rings) Y (Levers added to pawl shafts –
L (Lynch Pin Model)
HB (Hot Stick Gate Latch) Glove & Barrier) www.specialisedforce.com.au

B

HB

LINE CONFIGURATION
SINGLE DOUBLE
