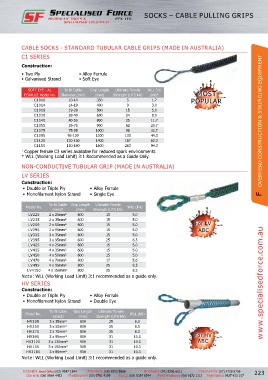

Page 233 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 233
SOCKS – CABLE PULLING GRIPS
CABLE SOCKS - STANDARD TUBULAR CABLE GRIPS (MADE IN AUSTRALIA)
C1 SERIES
Construction:
• Two Ply • Alloy Ferrule
• Galvanised Strand • Soft Eye
SOFT EYE - AL To fit Cable Grip Length Ultimate Tensile WLL 3:1
FERRULE Model No. Diameter (mm) (mm) Strength (UTS kN) (kN)* MOST
C1010 10-14 350 5 1.7 POPULAR
C1014 14-19 400 9 3.0
C1019 19-28 500 15 5.0
C1028 28-40 600 24 8.0
C1040 40-55 800 35 11.7
C1055 55-75 900 62 20.7 F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
C1075 75-95 1000 98 32.7
C1095 95-120 1200 133 44.3
C1120 120-150 1400 187 62.3
C1150 150-190 1600 283 94.3
1 Copper ferrule C3 series available for reduced spark environments
* WLL (Working Load Limit) 3:1 Recommended as a Guide Only.
NON-CONDUCTIVE TUBULAR GRIP (MADE IN AUSTRALIA)
LV SERIES
Construction:
• Double or Triple Ply • Alloy Ferrule
• Monofilament Nylon Strand • Single Eye
To fit Cable Grip Length Ultimate Tensile
Model No. WLL (kN)
(mm2) (mm) Strength (UTS kN)
LV225 2 x 25mm² 600 15 5.0
LV235 2 x 35mm² 600 15 5.0
LV250 2 x 50mm² 600 15 5.0 For LV
LV295 2 x 95mm² 600 15 5.0 ABC
LV335 3 x 35mm² 600 15 5.0
LV395 3 x 95mm² 600 25 8.3
LV425 4 x 25mm² 600 15 5.0
LV435 4 x 35mm² 600 15 5.0
LV450 4 x 50mm² 600 15 5.0
LV470 4 x 70mm² 800 17 5.6
LV495 4 x 95mm² 800 25 8.3
LV4150 4 x 150mm² 800 25 8.3
Note: WLL (Working Load Limit) 3:1 recommended as a guide only.
HV SERIES www.specialisedforce.com.au
Construction:
• Double or Triple Ply • Alloy Ferrule
• Monofilament Nylon Strand • Double Eye
To fit Cable Grip Length Ultimate Tensile
Model No. WLL (kN)
(mm2) (mm) Strength (UTS kN)
HV335 3 x 35mm² 800 25 8.3
HV350 3 x 50mm² 800 25 8.3
HV370 3 x 70mm² 800 25 8.3
HV395 3 x 95mm² 900 31 10.3 For HV
HV3120 3 x 120mm² 900 31 10.3 ABC
HV150 3 x 150mm² 900 31 10.3
HV3185 3 x 85mm² 900 31 10.3
Note: WLL (Working Load Limit) 3:1 recommended as a guide only.
