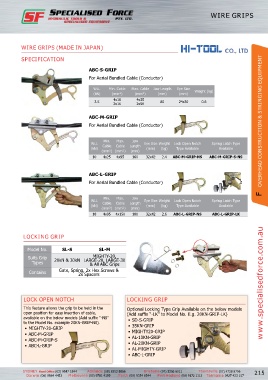

Page 225 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WIRE GRIPS

WIRE GRIPS (MADE IN JAPAN)

SPECIFICATION

ABC-S-GRIP

For Aerial Bundled Cable (Conductor)

WLL Min. Cable Max. Cable Jaw Length Eye Size
(kN) (mm²) (mm²) (mm) (mm) Weight (kg)
4x16 4x35
3.5 80 24x30 0.6
2x16 2x50

ABC-M-GRIP
For Aerial Bundled Cable (Conductor) F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

Min. Max. Jaw
WLL Cable Cable Length Eye Size Weight Lock Open Notch Spring Latch Type
(kN) (mm) (kg) Type Available Available
(mm²) (mm²) (mm)
10 4x25 4x95 160 32x42 2.4 ABC-M-GRIP-NS ABC-M-GRIP-S-NS

ABC-L-GRIP

For Aerial Bundled Cable (Conductor) t

Min. Max. Jaw
WLL Eye Size Weight Lock Open Notch Spring Latch Type
(kN) Cable Cable Length (mm) (kg) Type Available Available
(mm²) (mm²) (mm)
18 4x95 4x150 180 32x42 2.6 ABC-L-GRIP-NS ABC-L-GRIP-LK

LOCKING GRIP

Model No. SL-S SL-M
MIGHTy-20,
Suits Grip 20kN & 30kN LARGE-20, LARGE-30
Types & All ABC Grips

Contains Gate, Spring, 2x Hex Screws & www.specialisedforce.com.au
2x Spacers

LOCK OPEN NOTCH LOCKING GRIP
This feature allows the grip to be held in the Optional Locking Type Grip Available on the below models
open position for easy insertion of cable, (Add suffix “-LK” to Model No. E.g. 20KN-GRIP-LK)
available on the below models (Add suffix “-NS” • SD-S-GRIP
to the Model No. example 20KN-GRIP-NS).
• MIGHTy-20-GRIP • 35KN-GRIP
• ABC-M-GRIP • MIGHTy20-GRIP
• ABC-M-GRIP-S • AL-10KN-GRIP
• ABC-L-GRIP • AL-20KN-GRIP
• AL-MIGHTy-GRIP
• ABC-L-GRIP
