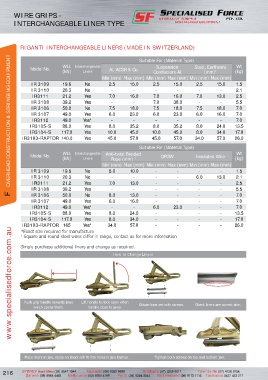

P. 226
WIRE GRIPS -
INTERCHANGEABLE LINER TYPE
RIGANTI INTERCHANGEABLE LINERS (MADE IN SWITZERLAND)
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
Suitable For (Material Type)
Model No. WLL Interchangeable Al, ACSR & Cu Suspension Steel, Earthwire Wt
(kN) Liners Conductors Al (mm) 1 (kg)
Min (mm) Max (mm) Min (mm) Max (mm) Min (mm) Max (mm)
IR 3109 19.6 No 2.5 15.0 2.5 15.0 2.5 15.0 1.5
IR 3110 20.3 No - - - - - - 2.1
IR3111 21.2 Yes 7.0 16.0 7.0 16.0 7.0 13.0 2.5
IR 3108 39.2 Yes - - 7.0 38.0 - - 5.5
IR 3106 50.0 No 7.5 18.0 7.5 18.0 7.5 18.0 7.0
IR 3107 49.0 Yes 6.0 23.0 6.0 23.0 6.0 16.0 7.0
IR3112 49.0 Yes* - - - - - - 7.0
IR3105-S 88.0 Yes 8.0 35.2 8.0 35.2 8.0 24.0 13.5
IR3104-S 117.0 Yes 10.0 45.0 10.0 45.0 8.0 34.0 17.0
IR3103-RAPTOR 140.0 Yes 45.0 57.0 45.0 57.0 34.0 57.0 26.0
Suitable For (Material Type)
WLL Interchangeable Anti-twist Braided Wt
Model No. (kN) Liners Rope (mm) 1 OPGW Insulated Wire (kg)
Min (mm) Max (mm) Min (mm) Max (mm) Min (mm) Max (mm)
IR 3109 19.6 No 8.0 10.0 - - - - 1.5
IR 3110 20.3 No - - - - 6.0 13.0 2.1
IR3111 21.2 Yes 7.0 13.0 - - - - 2.5
IR 3108 39.2 Yes - - - - - - 5.5
IR 3106 50.0 No 8.0 13.0 - - - - 7.0
IR 3107 49.0 Yes 6.0 16.0 - - - - 7.0
IR3112 49.0 Yes* - - 6.0 23.0 - - 7.0
IR3105-S 88.0 Yes 8.0 24.0 - - - - 13.5
IR3104-S 117.0 Yes 8.0 34.0 - - - - 17.0
IR3103-RAPTOR 165 Yes* 34.0 57.0 - - - - 26.0
www.specialisedforce.com.au
*Exact size required for manufacture
1 Square and round steel wires differ in range, contact us for more information
Simply purchase additional liners and change as required.
How to Change Liners
Push grip handle towards jaws Lift handle to lock open when Obtain liner set with screws. Check liners are correct size.
which opens them. handle close to jaws.
Place liners in jaw, stubs on liners will fit into holes in jaw frames. Tighten both screws on top and bottom jaw.
