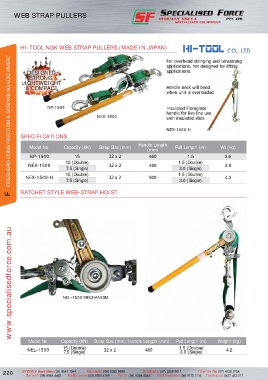

Page 230 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WEB STRAP PULLERS

HI-TOOL NGK WEB STRAP PULLERS (MADE IN JAPAN)

F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
For overhead stringing and tensioning
applications, not designed for lifting
DESIGNED applications.
STRONG,
LIGHTWEIGHT
& COMPACT Handle neck will bend
when unit is overloaded

NP-1500 Insulated Fibreglass
handle for live line use
NEX-1500 with insulated stick

NEX-1500-H
SPECIFICATIONS

Model No. Capacity (kN) Strap Size (mm) Handle Length Pull Length (m) Wt (kg)
(mm)
NP-1500 15 32 x 2 460 1.5 3.6
15 (Double) 1.5 (Double)
NEX-1500 32 x 2 460 3.9
7.5 (Single) 3.0 (Single)
15 (Double) 1.5 (Double)
NEX-1500-H 32 x 2 800 4.3
7.5 (Single) 3.0 (Single)
RATCHET STYLE WEB-STRAP HOIST

www.specialisedforce.com.au

NEL-1500 MECHANISM NEL-1500

Model No. Capacity (kN) Strap Size (mm) Handle Length (mm) Pull Length (m) Weight (kg)
NEL-1500 15 (Double) 32 x 2 460 1.5 (Double) 4.2
3.0 (Single)
7.5 (Single)
