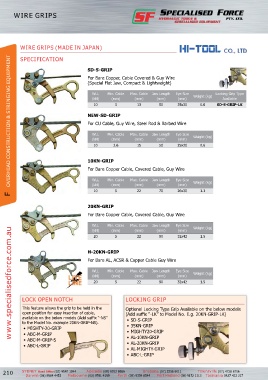

Page 220 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WIRE GRIPS

WIRE GRIPS (MADE IN JAPAN)

F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
SPECIFICATION
SD-S-GRIP

For Bare Copper, Cable Covered & Guy Wire
(Special Flat Jaw, Compact & Lightweight)

WLL Min. Cable Max. Cable Jaw Length Eye Size Locking Grip Type
(kN) (mm) (mm) (mm) (mm) Weight (kg) Available
10 3 13 50 25x30 0.6 SD-S-GRIP-LK

NEW-SD-GRIP
For CU Cable, Guy Wire, Steel Rod & Barbed Wire

WLL Min. Cable Max. Cable Jaw Length Eye Size
(kN) (mm) (mm) (mm) (mm) Weight (kg)
10 2.6 15 50 25x30 0.6

10KN-GRIP
For Bare Copper Cable, Covered Cable, Guy Wire

WLL Min. Cable Max. Cable Jaw Length Eye Size
(kN) (mm) (mm) (mm) (mm) Weight (kg)
10 5 22 70 26x30 1.1

20KN-GRIP

For Bare Copper Cable, Covered Cable, Guy Wire

WLL Min. Cable Max. Cable Jaw Length Eye Size Weight (kg)
www.specialisedforce.com.au
(kN) (mm) (mm) (mm) (mm)
20 5 22 90 32x42 1.5

H-20KN-GRIP
For Bare AL, ACSR & Copper Cable Guy Wire

WLL Min. Cable Max. Cable Jaw Length Eye Size Weight (kg)
(kN) (mm) (mm) (mm) (mm)
20 5 22 90 32x42 1.5

LOCK OPEN NOTCH LOCKING GRIP
This feature allows the grip to be held in the Optional Locking Type Grip Available on the below models
open position for easy insertion of cable, (Add suffix “-LK” to Model No. E.g. 20KN-GRIP-LK)
available on the below models (Add suffix “-NS” • SD-S-GRIP
to the Model No. example 20KN-GRIP-NS).
• MIGHTy-20-GRIP • 35KN-GRIP
• ABC-M-GRIP • MIGHTy20-GRIP
• ABC-M-GRIP-S • AL-10KN-GRIP
• ABC-L-GRIP • AL-20KN-GRIP
• AL-MIGHTy-GRIP
• ABC-L-GRIP
