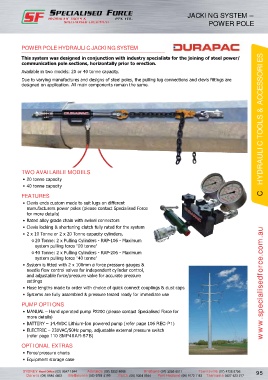

JACKING SYSTEM –
POWER POLE

POWER POLE HYDRAULIC JACKING SYSTEM

This system was designed in conjunction with industry specialists for the joining of steel power/
communication pole sections, horizontally prior to erection.
Available in two models: 20 or 40 tonne capacity.
Due to varying manufactures and designs of steel poles, the pulling lug connections and clevis fittings are
designed on application. All main components remain the same. C HYDRAULIC TOOLS & ACCESSORIES

TWO AVAILABLE MODELS
• 20 tonne capacity
• 40 tonne capacity
FEATURES
• Clevis ends custom made to suit lugs on different
manufacturers power poles (please contact Specialised Force
for more details)
• Rated alloy grade chain with swivel connectors
• Clevis locking & shortening clutch fully rated for the system
• 2 x 10 Tonne or 2 x 20 Tonne capacity cylinders,
◊ 20 Tonne: 2 x Pulling Cylinders - RAP-106 - Maximum
system pulling force “20 tonne”
◊ 40 Tonne: 2 x Pulling Cylinders - RAP-206 - Maximum
system pulling force “40 tonne”
• System is fitted with 2 x 100mm ø force pressure gauges &
needle flow control valves for independent cylinder control,
and adjustable force/pressure valve for accurate pressure
settings www.specialisedforce.com.au
• Hose lengths made to order with choice of quick connect couplings & dust caps
• Systems are fully assembled & pressure tested ready for immediate use
PUMP OPTIONS
• MANUAL – Hand operated pump P2200 (please contact Specialised Force for
more details)
• BATTERY – 14.4VDC Lithium-Ion powered pump (refer page 106 REC-P1)
• ELECTRIC – 230VAC/50Hz pump, adjustable external pressure switch
(refer page 110 SMP40AR-67B)

OPTIONAL EXTRAS
• Force/pressure charts
• Equipment storage case
