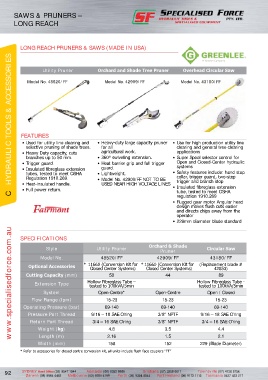

Page 102 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SAWS & PRUNERS –
LONG REACH

LONG REACH PRUNERS & SAWS (MADE IN USA)

C HYDRAULIC TOOLS & ACCESSORIES

Utility Pruner Orchard and Shade Tree Pruner Overhead Circular Saw

Model No. 48520/FF Model No. 42909/FF Model No. 43180/FF

FEATURES

• Used for utility line clearing and • Heavy-duty large capacity pruner • Use for high production utility line
selective pruning of shade trees. for all clearing and general tree clearing
• Heavy Duty capacity, cuts agricultural work. applications
branches up to 50 mm. • 360° swiveling extension. • Super Spool selector control for
• Trigger guard. • Heat barrier grip and full trigger Open and Closed-Center hydraulic
• Insulated fibreglass extension guard. systems
tubes, tested to meet OSHA • Lightweight. • Safety features include: hand stop
Regulation 1910.269. • Model No. 42909/FF NOT TO BE collar, trigger guard, two-step
• Heat-insulated handle. USED NEAR HIGH VOLTAGE LINES trigger and branch stop
• Full power return. • Insulated fibreglass extension
tube, tested to meet OSHA
regulation 1910.269
• Rugged gear motor Angular head
design makes flush cuts easier
and directs chips away from the
operator
• 229mm diameter blade standard

www.specialisedforce.com.au
SPECIFICATIONS
Orchard & Shade
Style Utility Pruner Circular Saw
Pruner
Model No. 48520/FF 42909/FF 43180/FF

Optional Accessories * 11660 (Conversion Kit for * 11660 (Conversion Kit for (Replacement blade #
Closed Center Systems)
Closed Center Systems)
42853)
Cutting Capacity (mm) 50 44 89
Extension Type Hollow Fibreglass Tube – Hollow Fibreglass Tube -
tested to 100kVA/5min
tested to 100kVA/5min
System Open-Centre* Open-Centre Open / Closed
Flow Range (lpm) 15-23 15-23 15-23
Operating Pressure (bar) 69-140 69-140 69-140
Pressure Port Thread 9/16 – 18 SAE O’ring 3/8” NPTF 9/16 – 18 SAE O’ring
Return Port Thread 3/4 – 16 SAE O’ring 3/8” NPTF 3/4 – 16 SAE O’ring
Weight (kg) 4.8 3.5 4.4
Length (m) 2.16 1.5 2.1
Width (mm) 158 152 229 (Blade Diameter)
* Refer to accessories for closed centre conversion kit, all units include flush face couplers “FF”
