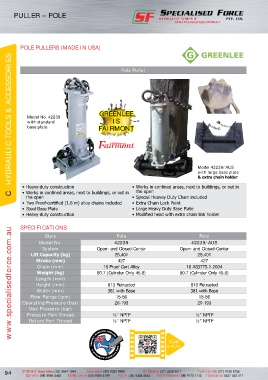

Page 104 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PULLER – POLE

POLE PULLERS (MADE IN USA)

C HYDRAULIC TOOLS & ACCESSORIES

Pole Puller

GREENLEE
Model No. 42239
with standard IS
base plate FAIRMONT

Model 42239/AUS
with large base plate
& extra chain holder
• Heavy-duty construction • Works in confined areas, next to buildings, or out in
• Works in confined areas, next to buildings, or out in the open
the open • Special Heavey Duty Chain included
• Two Proof-certified (1.8 m) alloy chains included • Extra Chain Lock Point
• Steel Base Plate • Large Heavy Duty Base Plate
• Heavy-duty construction • Modified head with extra chain link holder

SPECIFICATIONS
www.specialisedforce.com.au
Style Pole Pole
Model No. 42239 42239/AUS
System Open- and Closed-Center Open- and Closed-Center
Lift Capacity (kg) 25,401 25,401
Stroke (mm) 427 427
Chain (mm) 16 Proof Cert Alloy 16 AS3775.1-2004
Weight (kg) 80.7 (Cylinder Only 45.8) 80.7 (Cylinder Only 45.8)
Length (mm) - -
Height (mm) 813 Retracted 813 Retracted
Width (mm) 381 with Base 381 with Base
Flow Range (lpm) 15-56 15-56
Operating Pressure (bar) 20-193 20-193
Max Pressure (bar) - -
Pressure Port Thread ½” NPTF ½” NPTF
Return Port Thread ½” NPTF ½” NPTF
