P. 109

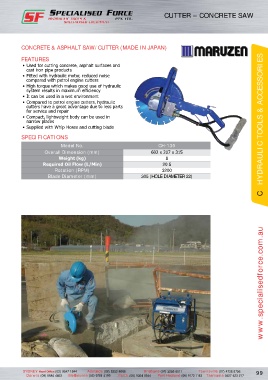

CUTTER – CONCRETE SAW
CONCRETE & ASPHALT SAW/CUTTER (MADE IN JAPAN)
FEATURES
• Used for cutting concrete, asphalt surfaces and
cast iron pipe products
• Fitted with hydraulic motor, reduced noise
compared with petrol engine cutters
• High torque which makes good use of hydraulic
system results in maximum efficiency
• It can be used in a wet environment
• Compared to petrol engine cutters, hydraulic
cutters have a great advantage due to less parts
for service and repair
• Compact, lightweight body can be used in
narrow places
• Supplied with Whip Hoses and cutting blade C HYDRAULIC TOOLS & ACCESSORIES
SPECIFICATIONS
Model No. CH-130
Overall Dimension (mm) 602 x 207 x 315
Weight (kg) 8
Required Oil Flow (L/Min) 20.5
Rotation (RPM) 3200
Blade Diameter (mm) 305 (HOLE DIAMETER 22)
