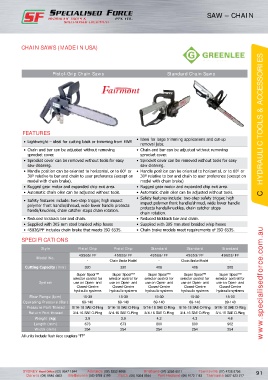

Page 101 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SAW – CHAIN

CHAIN SAWS (MADE IN USA)

Pistol-Grip Chain Saws Standard Chain Saws

C HYDRAULIC TOOLS & ACCESSORIES
FEATURES
• Ideal for large trimming applications and cut-up
• Lightweight – ideal for cutting back or trimming from EWP.
removal jobs.
• Chain and bar can be adjusted without removing • Chain and bar can be adjusted without removing
sprocket cover. sprocket cover.
• Sprocket cover can be removed without tools for easy • Sprocket cover can be removed without tools for easy
saw cleaning. saw cleaning.
• Handle position can be oriented to horizontal, or to 60º or • Handle position can be oriented to horizontal, or to 60º or
30º relative to bar and chain to user preference (except on 30º relative to bar and chain to user preference (except on
model with chain brake). model with chain brake)
• Rugged gear motor and expanded chip exit area. • Rugged gear motor and expanded chip exit area.
• Automatic chain oiler can be adjusted without tools. • Automatic chain oiler can be adjusted without tools.
• Safety features include: two-step safety trigger, high
• Safety features include: two-step trigger, high impact
polymer front handle/shroud, wide lower handle protects impact polymer front handle/shroud, wide lower handle
hands/knuckles, chain catcher stops chain rotation. protects hands/knuckles, chain catcher stops
chain rotation.
• Reduced kickback bar and chain. • Reduced kickback bar and chain.
• Supplied with 305 mm steel braided whip hoses • Supplied with 305 mm steel braided whip hoses
• 45826/FF includes chain brake that meets ISO 6535. • Chain brake models meet requirements of ISO 6535.
SPECIFICATIONS

Style Pistol Grip Pistol Grip Standard Standard Standard
49565/FF 45826/FF 49566/FF 45653/FF 49603/FF
Model No.
- Chain Brake Model - Chain Brake Model -
Cutting Capacity (mm) 330 330 406 406 508
Super Spool™ Super Spool™ Super Spool™ Super Spool™ Super Spool™
selector control for selector control for selector control for selector control for selector control for
System use on Open- and use on Open- and use on Open- and use on Open- and use on Open- and www.specialisedforce.com.au
Closed-Centre Closed-Centre Closed-Centre Closed-Centre Closed-Centre
hydraulic systems hydraulic systems hydraulic systems hydraulic systems hydraulic systems
Flow Range (lpm) 15-30 15-30 15-30 15-30 15-30
Operating Pressure (Bar) 69-140 69-140 69-140 69-140 69-140
Pressure Port Thread 9/16-18 SAE O-Ring 9/16-18 SAE O-Ring 9/16-18 SAE O-Ring 9/16-18 SAE O-Ring 9/16-18 SAE O-Ring
Return Port thread 3/4-16 SAE O-Ring 3/4-16 SAE O-Ring 3/4-16 SAE O-Ring 3/4-16 SAE O-Ring 3/4-16 SAE O-Ring
Weight (kg) 3.9 3.9 4.3 4.3 4.6
Length (mm) 673 673 800 800 902
Width (mm) 254 254 254 254 254
All units include flush face couplers “FF”
