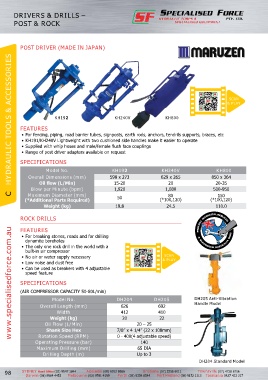

Page 108 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DRIVERS & DRILLS –
POST & ROCK

POST DRIVER (MADE IN JAPAN)

C HYDRAULIC TOOLS & ACCESSORIES

SCAN
& PLAY

KH192 KH240V KH800
FEATURES
• For fencing, piping, road barrier tubes, signposts, earth rods, anchors, tendrils supports, braces, etc
• KH191/KH240V Lightweight with two cushioned side handles make it easier to operate
• Supplied with whip hoses and male/female flush face couplings
• Range of post driver adapters available on request

SPECIFICATIONS
Model No. KH192 KH240V KH800
Overall Dimensions (mm) 598 x 273 629 x 265 850 x 364
Oil flow (L/Min) 15-20 20 20-35
Blow per Minute (bpm) 1,920 1,080 500-950
Maximum Diameter (mm) 50 80 150
(*Additional Parts Required) (*100,120) (*100,120)
Weight (kg) 19.8 24.5 110.0

ROCK DRILLS

www.specialisedforce.com.au
FEATURES PROUDLY MARKETED, SERVICED
• For breaking stones, roads and for drilling & SUPPORTED AUSTRALIA WIDE
dynamite boreholes
• The only one rock drill in the world with a
built-in air compressor
SCAN
• No air or water supply necessary & PLAY
• Low noise and dust free
• Can be used as breakers with 4 adjustable
speed feature
SPECIFICATIONS

(AIR COMPRESSOR CAPACITY 50-80L/min)
Model No. DH204 DH205 DH205 Anti-Vibration
Overall Length (mm) 626 692 Handle Model
Width 412 410
Weight (kg) 20 22
Oil Flow (L/Min) 20 – 25
Shank Size Hex 7/8” x 4 1/4” (22 x 108mm)
Rotation Speed (RPM) 0 - 400(4 adjustable speed)
Operating Pressure (bar) 140
Maximum Drilling (mm) 65 DIA
Drilling Depth (m) Up to 3
DH204 Standard Model
