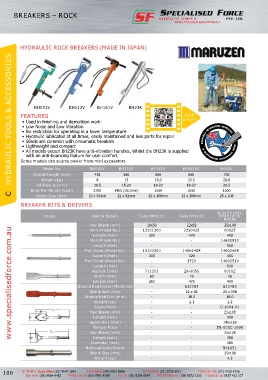

Page 110 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BREAKERS – ROCK

HYDRAULIC ROCK BREAKERS (MADE IN JAPAN)

C HYDRAULIC TOOLS & ACCESSORIES

BH051V BH112V BH161V BH23K
FEATURES SCAN
• & PLAY
• Low Noise and Low Vibration
• No restriction for operating in a lower temperature
• Hydraulic lubricated at all times, easily maintained and less parts for repair
• Steels are common with pneumatic breakers PROUDLY MARKETED, SERVICED
• Lightweight and compact & SUPPORTED AUSTRALIA WIDE
• All models except BH23K have anti-vibration handles. Whilst the BH23K is supplied
with an anti-bouncing feature for user comfort.
Some models can source power from mini excavators
Model No. BH051V BH112V BH161V BH161VC BH23K
Overall Length (mm) 428 566 660 660 702
Weight (kg) 8 13 19.3 23.5 26.8
Oil Flow (L/min) 20.5 15-20 18-22 18-22 20.5
Blow Per Minute (bpm) 2700 1450 (15L/min) 1650 1650 1500
Shank Size (Hex) 19 x 50mm 22 x 82mm 25 x 108mm 25 x 108mm 25 x 108
BREAKER BITS & DRIVERS
Suits BH161V,
Image Item & Details Suits BH051V Suits BH112V BH161VC &
BH23K
Hex Shank (mm) 19x50 22x82 25x108
www.specialisedforce.com.au
Moil (Model No.) 13101300 22S0425 0002Z
Length (mm) 300 470 400
Moil (Model No.) - - 14601510
Length (mm) - - 510
Flat Chisel (Model No.) 13102300 14002465 14602465
Length (mm) 300 420 465
Flat Chisel (Model No.) - 1720 14602510
Length (mm) - 510
Asphalt Cutter 711202 ZA-005S 0010Z
Width (mm) 60 75 76
Length (mm) 260 475 400
Ground Rod Driver (Model No) - B12783 B22783
Shank Size (mm) - 22 x 82 25 x 108
Ground Rod Size (mm) - 16.0 16.0
Weight (kg) - 2.1 2.2
Spade Point - - C-1004-01
Hex Shank (mm) - - 25x108
Length (mm) - - 400
Spade WxL (mm) - - 140x180
Tamper Plate - - ZN-003C-1005
Hex Shank (mm) - - 25x108
Length (mm) - - 280
Diameter (mm) - - 180
Railroad Spike Driver - - B41851
Shank Size (mm) - - 25x108
Weight (kg) - - 4.3
