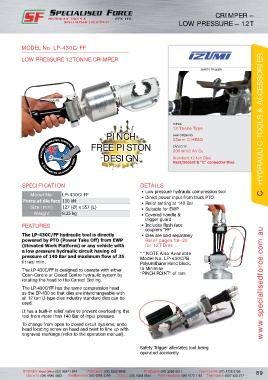

Page 99 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

CRIMPER –
LOW PRESSURE – 12T

MODEL No. LP-430C/FF

LOW PRESSURE 12TONNE CRIMPER

SAFETY TRIGGER

FORCE C HYDRAULIC TOOLS & ACCESSORIES
12 Tonne Type
PINCH JAW OPENING
36mm C-HEAD
FREE PISTON CAPACITY
PROUDLY MARKETED, SERVICED 300mm2 Al/Cu

& SUPPORTED AUSTRALIA WIDE DESIGN Standard 12 ton Dies
Nest/Indent & “C” connector Dies

SPECIFICATION DETAILS
• Low pressure hydraulic compression tool
Model No. LP-430C/FF • Direct power input from truck PTO
Force at die face 110 kN • Relief setting at 140 Bar
Size (mm) 127 (Ø) x 557 (L) • Suitable for EWP
Weight 8.25 kg • Covered handle &
trigger guard
FEATURES • Includes flush face
couplers “FF”
The LP-430C/FF hydraulic tool is directly • Dies are sold separately
powered by PTO (Power Take Off) from EWP Refer pages 18–20
(Elevated Work Platform) or any vehicle with for 12T Dies
a low pressure hydraulic circuit having oil **NOTE Also Available
pressure of 140 Bar and maximum flow of 35 Model No. LP-430CPB
litres/min. Polyurethane Hand block,
The LP-430C/FF is designed to operate with either to Minimise
Open-Centre or Closed Centre hydraulic system by “PINCH POINT” of ram
rotating the head to the Correct Setting. www.specialisedforce.com.au
The LP-430C/FF has the same compression head
as the EP-430 so that dies are interchangeable with
all 12 ton U-type dies industry standard dies can be
used.
It has a built-in relief valve to prevent overloading the
tool from more than 140 Bar of input pressure.
To change from open to closed circuit systems, undo
head locating screw on head and twist to line up with
engraved markings (refer to the operation manual).

Safety Trigger alleviates tool being
operated accidently
