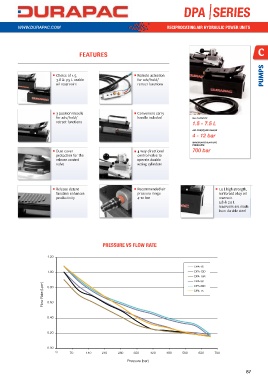

DPA |SERIES




         WWW.DURAPAC.COM                                                   RECIPROCATING AIR HYDRAULIC POWER UNITS





                                    Features                                                                        C


                                                                                                                      PUMPS  PUMPS
                          Choice of 1.5,                      Remote actuation
                          3.8 & 7.5 L usable                  for adv/hold/
                          oil reservoirs                      retract functions






                          3 position treadle                  Convenient carry
                          for adv/hold/                       handle included         OIL CAPACITY
                          retract functions                                           1.5 - 7.5 L

                                                                                      AIR PRESSURE RANGE
                                                                                      4 - 12 bar
                                                                                      MAXIMUM OPERATING
                                                                                      PRESSURE
                          Dust cover                          4 way directional       700 bar
                          protection for the                  control valve to
                          release control                     operate double
                          valve                               acting cylinders





                          Release detent                      Recommended air                     1.5 L high strength,
                          function enhances                   pressure range                      reinforced alloy oil
                          productivity                        4-12 bar                            reservoir.
                                                                                                  3.8 & 7.5 L
                                                                                                  reservoirs are made
                                                                                                  from durable steel







                                               PRESSURE VS FLOW RATE

                      1.20

                                                                                       DPA-15
                      1.00                                                             DPA-15D
                                                                                       DPA-15R
                                                                                       DPA-38
                    Flow Rate (Lpm)  0.60                                              DPA-75
                                                                                       DPA-38D
                      0.80





                      0.40



                      0.20


                      0.00
                          0     70     140    210    280    350     420    490    560    630    700
                                                          Pressure (bar)

                                                                                                              87
