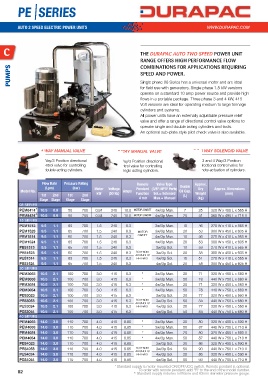

PE |SERIES




         AUTO 2 SPEED ELECTRIC POWER UNITS                                                   WWW.DURAPAC.COM




   C                                                           thE Durapac auto tWo SpeeD powEr uNit

                                                               raNGE offErs hiGh pErformaNcE fLow
                                                               combiNatioNs for appLicatioNs rEquiriNG
      PUMPS                                                    spEED aND powEr.

                                                               Single phase 08 Series has a universal motor and are ideal
                                                               for field use with generators. Single phase 1.5 kW versions
                                                               operate on a standard 10 amp power source and provide high
                                                               flows in a portable package. Three phase 3 and 4 kW, 415
                                                               Volt versions are ideal for operating medium to large tonnage
                                                               cylinders and systems.
                                                               All power units have an externally adjustable pressure relief
                                                               valve and offer a range of directional control valve options to
                                                               operate single and double acting cylinders and tools.
                                                               An optional sub-plate style pilot check valve is also available.



                   4 WAY MANUAL vALvE                3 WAY MANUAL vALvE                3 & 4 WAY SOLENOID vALvE

                   4 Way/3 Position directional      3 Way/3 Position directional          3 and 4 Way/3 Position
                    control valve for controlling     control valve for controlling       directional control valve for
                     double acting cylinders.          single acting cylinders.          remote actuation of cylinders.


                    Flow Rate   Pressure Rating               Remote   Valve Type       Approx.
                     (Lpm)       (bar)     Motor   Voltage    Pendant  (3/8"-NPTF Ports)   Usable    Dry    Approx. Dimensions
          Model No.                                     Amps                     Oil Cap.
                   1st   2nd   1st    2nd   kW   (50 Hz)     Function  Sol.= Solenoid   (L)  Weight   (mm)
                   Stage Stage  Stage  Stage                   4 mtr  Man.= Manual       (kg)
          08 SERIES
          PEM8414 ^  10.5  0.9  50   700   0.84   240   10.0  MOTOR  ON/OFF  4w/3p Man.  7  25  320 W x 400 L x 565 H
          PEM8424 ^  10.5  0.9  50   700   0.84   240   10.0  MOTOR  ON/OFF  4w/3p Man.  20  41  368 W x 490 L x 715 H
          15 SERIES
          PEM1513  9.5   1.1   65    700    1.5   240    8.3          3w/3p Man.  10     46    270 W x 410 L x 565 H
          PEM1523  9.5   1.1   65    700    1.5   240    8.3  MOTOR    3w/3p Man.  20    53    300 W x 450 L x 605 H
          PEM1514  9.5   1.1   65    700    1.5   240    8.3  ON/OFF  4w/3p Man.  10     46    270 W x 410 L x 565 H
          PEM1524  9.5   1.1   65    700    1.5   240    8.3          4w/3p Man.  20     53    300 W x 450 L x 605 H
          PES1513  9.5   1.1   65    700    1.5   240    8.3          3w/3p Sol.  10     59    270 W x 410 L x 565 H
                                                             SOLENOID
          PES1523  9.5   1.1   65    700    1.5   240    8.3  ADV/HOLD/  3w/3p Sol.  20  58    300 W x 450 L x 605 H
          PES1514  9.5   1.1   65    700    1.5   240    8.3  RETRACT  4w/3p Sol.  10    51    270 W x 410 L x 565 H
          PES1524  9.5   1.1   65    700    1.5   240    8.3          4w/3p Sol.  20     58    300 W x 450 L x 605 H
          30 SERIES
          PEM3023  10.5  2.1   100   700    3.0   415    6.3    *     3w/3p Man.  20     71    320 W x 450 L x 560 H
          PEM3053  10.5  2.1   100   700    3.0   415    6.3    *     3w/3p Man.  50     78    440 W x 750 L x 680 H
          PEM3024  10.5  2.1   100   700    3.0   415    6.3    *     4w/3p Man.  20     71    320 W x 450 L x 560 H
          PEM3054  10.5  2.1   100   700    3.0   415    6.3    *     4w/3p Man.  50     78    440 W x 750 L x 680 H
          PES3023  10.5  2.1   100   700    3.0   415    6.3          3w/3p Sol.  20     77    320 W x 450 L x 560 H
                                                             SOLENOID
          PES3053  10.5  2.1   100   700    3.0   415    6.3  ADV/HOLD/  3w/3p Sol.  50  84    440 W x 750 L x 680 H
          PES3024  10.5  2.1   100   700    3.0   415    6.3  RETRACT  4w/3p Sol.  20    77    320 W x 450 L x 560 H
          PES3054  10.5  2.1   100   700    3.0   415    6.3          4w/3p Sol.  50     84    440 W x 750 L x 680 H
          40 SERIES
          PEM4023  14.0  3.0   110   700    4.0   415   8.85    *     3w/3p Man.  20     80    320 W x 450 L x 590 H
          PEM4053  14.0  3.0   110   700    4.0   415   8.85    *     3w/3p Man.  50     87    440 W x 750 L x 710 H
          PEM4024  14.0  3.0   110   700    4.0   415   8.85    *     4w/3p Man.  20     80    320 W x 450 L x 590 H
          PEM4054  14.0  3.0   110   700    4.0   415   8.85    *     4w/3p Man.  50     87    440 W x 750 L x 710 H
          PES4023  14.0  3.0   110   700    4.0   415   8.85          3w/3p Sol.  20     86    320 W x 450 L x 590 H
                                                             SOLENOID
          PES4053  14.0  3.0   110   700    4.0   415   8.85  ADV/HOLD/  3w/3p Sol.  50  93    440 W x 750 L x 710 H
          PES4024  14.0  3.0   110   700    4.0   415   8.85  RETRACT  4w/3p Sol.  20    86    320 W x 450 L x 590 H
          PES4054  14.0  3.0   110   700    4.0   415   8.85          4w/3p Sol.  50     93    440 W x 750 L x 710 H
                                                    * Standard supply is motor mounted ON/OFF/JOG switch. Remote pendant is optional.
                                                               To order with remote pendant; add "R" to the end of the model number.
         82                                                 ^ Standard supply includes roll frame and 63mm diameter pressure gauge.
