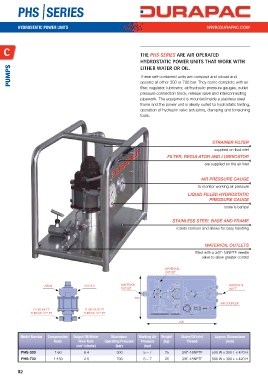

PHS |SERIES




         HYDROSTATIC POWER UNITS                                                             WWW.DURAPAC.COM




   C                                                           thE pHS-SerIeS arE air opEratED

                                                               hyDrostatic powEr uNits that worK with
      PUMPS                                                    These self-contained units are compact and robust and
                                                               EithEr watEr or oiL.

                                                               operate at either 300 or 700 bar. They come complete with air
                                                               filter, regulator, lubricator, air/hydraulic pressure gauges, outlet
                                                               pressure connection block, release valve and interconnecting
                                                               pipework. The equipment is mounted inside a stainless steel
                                                               frame and the power unit is ideally suited to hydrostatic testing,
                                                               operation of hydraulic valve actuators, clamping and tensioning
                                                               tools.






                                                                                               STRAINER FILTER
                                                                                                supplied on fluid inlet
                                                                           FILTER, REGULATOR AND LUBRICATOR
                                                                                            are supplied on the air inlet


                                                                                          AIR PRESSURE GAUGE
                                                                                         to monitor working air pressure
                                                                                     LIqUID FILLED hYDROSTATIC
                                                                                              PRESSURE GAUGE

                                                                                                     scale is bar/psi
                         WATER/OIL
                         OUTLET
                                                                              STAINLESS STEEL BASE AND FRAME
      WATER/OIL                                       WATER/OIL
      OUTLET                                          INLET                    resists corrison and allows for easy handling

            300
                                                  AIR COUPLER
                                                                                            WATER/OIL OUTLETS
                                                                                        fitted with a 3/8"-18NPTF needle
                                                                                           valve to allow greater control
                               500
                                                                          WATER/OIL
                                                                          OUTLET


                     AIR IN           AIR OUT          WATER/OIL                                       WATER/OIL
                                                       OUTLET                                          INLET
                                                             300
                                                                                                   AIR COUPLER
                FLUID INLET            FLUID OUTLET
               THREAD 1/2"-PT         THREAD 1/2"-PT

                                                                                 500


          Model Number  Compression   Output Oil/Water   Maximium   Working Air   Weight    Water/Oil Inlet   Approx. Dimensions
                         Ratio      Flow Rate    Operating Pressure    Pressure    (kg)  Thread      (mm)
                                   (cm /stroke)     (bar)        (bar)  AIR IN          AIR OUT
                                      3
          PHS-300         1:60         6.4           300         5 ~ 7     25     3/8"-18NPTF   500 W x 300 L x 420 H
          PHS-700        1:150         2.5           700         5 ~ 7     25     3/8"-18NPTF   500 W x 300 L x 420 H

                                                                 FLUID INLET
                                                                                        FLUID OUTLET
         92                                                     THREAD 1/2"-PT         THREAD 1/2"-PT
