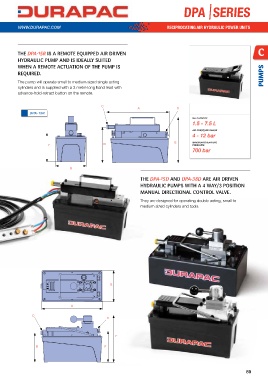

DPA |SERIES




         WWW.DURAPAC.COM                                                   RECIPROCATING AIR HYDRAULIC POWER UNITS





                  15
         thE Dpa- r is a rEmotE EquippED air DrivEN                                                                 C
         hyDrauLic pump aND is iDEaLLy suitED
         whEN a rEmotE actuatioN of thE pump is
         rEquirED.                                                                                                    PUMPS
         The pump will operate small to medium sized single acting
         cylinders and is supplied with a 3 metre long hand lead with
         advance-hold-retract button on the remote.


                                              C
                                                              A                 D
              DPA-15R
                                                                                      OIL CAPACITY
                                                                                      1.5 - 7.5 L

                                                                                      AIR PRESSURE RANGE
                                                                                      4 - 12 bar
                                                                               E      MAXIMUM OPERATING
                       F                       B                                      PRESSURE
                                                                                      700 bar



                                G
                                                                        15
                                                                                      3
                                                               thE Dpa- D aND Dpa- 8D arE air DrivEN
                                                                                           4
                                                                                                  3
                                                               hyDrauLic pumps with a   way/  positioN
                                                               maNuaL DirEctioNaL coNtroL vaLvE.
                                                               They are designed for operating double acting, small to
                                                               medium sized cylinders and tools.













              DPA-15D & DPA-38D





                                                  G




                                 A

               C
                                                 D



                                                    E
                 B                              F





                                                                                                              89
