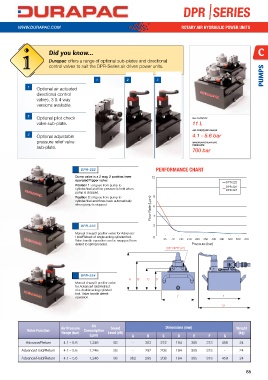

           !                                                                      DPR |SERIES



         WWW.DURAPAC.COM                                                          ROTARY AIR HYDRAULIC POWER UNITS


           i           Did you know...                                                                              C



                       Durapac offers a range of optional sub-plates and directional
                       control valves to suit the DPR-Series air driven power units.
                                                                                                                      PUMPS

                                            1             2            3
              1
                  Optional air actuated
                 directional control
                 valves, 3 & 4 way
                 versions available.


              2     Optional pilot check                                              OIL CAPACITY
                 valve sub-plate.                                                     11 L

                                                                                      AIR PRESSURE RANGE
              3     Optional adjustable                                               4.1 - 5.6 bar
                 pressure relief valve                                                MAXIMUM OPERATING
                 sub-plate.                                                           PRESSURE
                                                                                      700 bar



                                     DPR-222                          PERFORMANCE CHART
                                  Dump valve is a 2 way, 2 position lever   12
                                  operated flipper valve:                                            DPR-222
                                  Position 1: oil goes from pump to                                  DPR-223
                                  cylinder/tool and line pressure is held when                       DPR-224
                                  pump is stopped.
                                  Position 2: oil goes from pump to    8
                                                                    Flow Rate (Lpm)  4
                                  cylinder/tool and flows back automatically
                                  when pump is stopped.              6



                                     DPR-223                         2
                                  Manual 3 way/3 position valve for Advance/
                                  Hold/Retract of single acting cylinder/tool.   0
                                  Valve handle operation can be swapped from   35  70  140  210  280  350  420  490  560  630  700
                                  detent to spring loaded.                            Pressure (bar)
                                                                           3/8"-NPTF (x2)






                                     DPR-224
                                                          A   B   C   D
                                  Manual 4 way/3 position valve
                                  for Advance/Hold/Retract
                                  of a double acting cylinder/
                                  tool. Valve handle detent
                                  operation.                                    E                   F
                                                                                                    G




 Maximum  Pressure Rating    Oil Output Flow Rate    Air
 Used with   Motor Size   Usable Oil   Air Pressure   Sound                Dimensions (mm)                Weight
 Model No.  Pressure   (bar)  (Lpm)  Valve Type  Valve Function  Consumption
 Cylinder  (kW)  Capacity (L)  Range (bar)       Level (dB)                                                (kg)
 Rating (bar)  1st Stage  2nd Stage   1st Stage   2nd Stage   (Lpm)   A  B  C   D      E      F     G
 DPR-222  S/A  1.27  11.0  700  48  700  5.1  0.36  Dump  Advance/Return  4.1 – 5.6  1,246  93  -  303  212  184  305  313  456  24
 DPR-223  S/A  1.27  11.0  700  48  700  6.8  0.36  Manual 3w/3p  Advance/Hold/Return  4.1 – 5.6  1,246  93  -  292  208  184  305  313  -  24

 DPR-224  D/A  1.27  11.0  700  48  700  6.8  0.36  Manual 4w/3p  Advance/Hold/Return  4.1 – 5.6  1,246  93  362  295  208  184  305  313  459  24

                                                                                                              85
