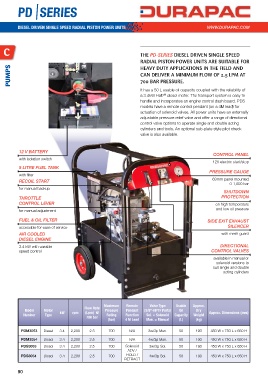

PD |SERIES




         DIESEL DRIVEN SINGLE SPEED RADIAL PISTON POWER UNITS                                WWW.DURAPAC.COM




   C                                                           thE pD-SerIeS DiEsEL DrivEN siNGLE spEED

                                                               raDiaL pistoN powEr uNits arE suitabLE for
      PUMPS                                                    caN DELivEr a miNimum fLow of 2.5 Lpm at
                                                               hEavy Duty appLicatioNs iN thE fiELD aND

                                                               700 bar prEssurE.
                                                               It has a 50 L usable oil capacity coupled with the reliability of
                                                               a 3.4kW Hatz  diesel motor. The transport system is easy to
                                                                          ®
                                                               handle and incorporates an engine control dash board. PDS
                                                               models have a remote control pendant (on a 4M lead) for
                                                               actuation of solenoid valves. All power units have an externally
                                                               adjustable pressure relief valve and offer a range of directional
                                                               control valve options to operate single and double acting
                                                               cylinders and tools. An optional sub-plate style pilot check
                                                               valve is also available.



          12 v BATTERY
                                                                                                CONTROL PANEL
          with isolation switch
                                                                                               12V electric start/stop
          5 LITRE FUEL TANk
                                                                                              PRESSURE GAUGE
          with filter
          RECOIL START                                                                         63mm panel mounted
                                                                                                       0-1,000 bar
          for manual backup
                                                                                                    ShUTDOWN
          ThROTTLE                                                                                 PROTECTION
          CONTROL LEvER                                                                          on high temperature
          for manual adjustment                                                                  and low oil pressure
          FUEL & OIL FILTER                                                                  SIDE EXIT EXhAUST
          accessible for ease of service                                                              SILENCER
          AIR COOLED                                                                               with mesh guard
          DIESEL ENGINE
          3.4 kW with variable                                                                     DIRECTIONAL
          speed control                                                                        CONTROL vALvES
                                                                                                available in manual or
                                                                                                 solenoid versions to
                                                                                                suit single and double
                                                                                                    acting cylinders







                                               Maximum   Remote     Valve Type    Usable   Approx.
                                       Flow Rate
            Model    Motor                      Pressure   Pendant   (3/8"-NPTF Ports)    Oil   Dry
           Number    Type   kW   rpm   (Lpm)  @   Rating   Function    Sol. = Solenoid   Capacity   Weight   Approx. Dimensions (mm)
                                       700 bar
                                                 (bar)   4 M Lead  Man. = Manual  (L)   (kg)
          PDM3053   Diesel  3.4  2,200   2.5     700      N/A      3w/3p Man.    50     190    450 W x 750 L x 650 H
          PDM3054   Diesel  3.4  2,200   2.5     700      N/A      4w/3p Man.    50     190    450 W x 750 L x 650 H
          PDS3053   Diesel  3.4  2,200   2.5     700     Solenoid   3w/3p Sol.   50     190    450 W x 750 L x 650 H
                                                          ADV /
          PDS3054   Diesel  3.4  2,200   2.5     700     HOLD /    4w/3p Sol.    50     190    450 W x 750 L x 650 H
                                                        RETRACT
