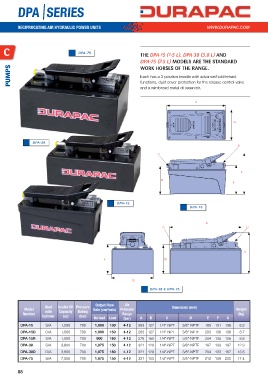

DPA |SERIES




         RECIPROCATING AIR HYDRAULIC POWER UNITS                                             WWW.DURAPAC.COM




   C                                DPA-75                     thE Dpa-  (      L), Dpa- 8 ( .8 L) aND
                                                                                           3
                                                                                       3
                                                                        15 1.5
                                                                       (
                                                               Dpa- 75 7.5  L) moDELs arE thE staNDarD
      PUMPS                                                    Each has a 3 position treadle with advance/hold/retract
                                                               worK horsEs of thE raNGE.
                                                               functions, dust cover protection for the release control valve
                                                               and a reinforced metal oil reservoir.


                                                                                        A



                                                                                                         G




                DPA-38
                                                                                                           D
                                                                       C



                                                                                                            E
                                                                         B
                                                                                                        F




                                                     DPA-15
                                                                                     DPA-15


                                                                                            A
                                                                         C                                    D





                                                                                                              E
                                               F                          B




                                                            G

                                                                    DPA-38 & DPA-75


                     Used   Usable Oil   Pressure   Output Flow   Air        Dimension (mm)
            Model                         Rate (cm /min)  Pressure                                        Weight
                                                3
           Number    with   Capacity   Rating          Range                                               (kg)
                    Cylinder  (cc)  (bar)  No load Load  (bar)  A   B      C         D       E   F    G
           DPA-15    S/A    1,500    700   1,000  180   4-12  263  127  1/4"-NPT  3/8"-NPTF  185  131  136   8.2
           DPA-15D   D/A    1,500    700   1,000  150   4-12  263  127  1/4"-NPT  3/8"-NPTF  203  136  136   8.7
           DPA-15R   S/A    1,500    700    900   160   4-12  279  160  1/4"-NPT  3/8"-NPTF  204  130  136   8.8
           DPA-38    S/A    3,800    700   1,075  150   4-12  321  129  1/4"-NPT  3/8"-NPTF  187  133  187   12.3
           DPA-38D   D/A    3,800    700   1,075  180   4-12  321  129  1/4"-NPT  3/8"-NPTF  204  133  187  13.5
           DPA-75    S/A    7,550    700   1,075  150   4-12  321  155  1/4"-NPT  3/8"-NPTF  212  159  255   17.4

         88
