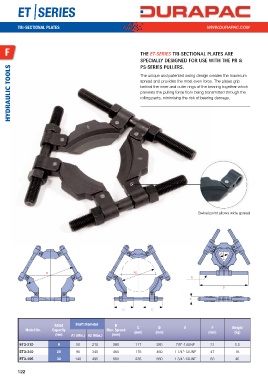

ET |SERIES




         TRI-SECTIONAL PLATES                                                                WWW.DURAPAC.COM




   F                                                           thE et-SerIeS tri-sEctioNaL pLatEs arE

                                                               spEciaLLy DEsiGNED for usE with thE pr &
                                                               ps-sEriEs puLLErs.
      HYDRAULIC TOOLS                                          spread and provides the most even force. The plates grip
                                                               The unique and patented swing design creates the maximum

                                                               behind the inner and outer rings of the bearing together which
                                                               prevents the pulling force from being transmitted through the
                                                               rolling parts, minimising the risk of bearing damage.






























                                                                                         Swivel point allows wide spread










                                                                                                   A1



                     B                                      A2
                                                                                      E

                                                                                                    D

                                                                                      F

                                                       C            C


                         Rated     Shaft Diameter   B
                                                                       D
                                                                                               F
                                                              C
            Model No.   Capacity                Max. Spread  (mm)     (mm)         E          (mm)      Weight
                                                                                                         (kg)
                          (ton)  A1 (Min.) A2 (Max.)  (mm)
          ET3-210          8       50     210      280       117       285     7/8"-14UNF     31         5.5
          ET3-340         20       90     340      460       175       460    1 1/4"-12UNF    47          18
          ET3-495         30      140     495      660       235       660    1 3/4"-12UNF    63          45
