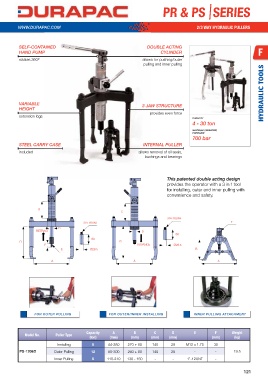

PR & PS |SERIES




         WWW.DURAPAC.COM                                                                2/3 WAY HYDRAULIC PULLERS



          SELF-CONTAINED                                          DOUBLE ACTING
          hAND PUMP                                                     CYLINDER                                    F
          rotates 360º                                          allows for pushing/outer
                                                                 pulling and inner pulling
                                                                                                                      HYDRAULIC TOOLS








          vARIABLE                                              3 JAW STRUCTURE
          hEIGhT
                                                                    provides even force
          extension legs
                                                                                      CAPACITY
                                                                                      4 - 30 ton
                                                                                      MAXIMUM OPERATING
                                                                                      PRESSURE
                                                                                      700 bar
          STEEL CARRY CASE                                       INTERNAL PULLER
          included                                             allows removal of oil seals,
                                                                 bushings and bearings




                                                                           This patented double acting design
                                                                           provides the operator with a 3 in 1 tool
                                                                           for installing, outer and inner pulling with
                                                                           convenience and safety.



                  B
                                                       C
                                                                           3/4-16UNF
                                      3/4-16UNF                                                         E
                           D
                 RETRACT                                        D
                                                                               80
                                          80
          B                                           B
                     F                                        ADVANCE         Ø28.5
                            E            Ø28.5                                          B

                        A                                   A                                     A












                FOR OUTER PULLING                FOR OUTER/INNER INSTALLING            INNER PULLING ATTAChMENT




                                       Capacity    A        B         C      D         E        F       Weight
            Model No.     Puller Type
                                         (ton)    (mm)     (mm)     (mm)    (mm)               (mm)      (kg)
                          Installing      8      44-280   270 + 80   140     28     M12 x 1.75  30
          PS-1208D       Outer Pulling   12      85-300   260 + 80   140     28        -         -       19.5
                         Inner Pulling    8      110-210  130 - 150   -       -     1"-12UNF     -

                                                                                                             121
