CRK |SERIES




         WWW.DURAPAC.COM                                                              MAINTENANCE AND REPAIR KITS

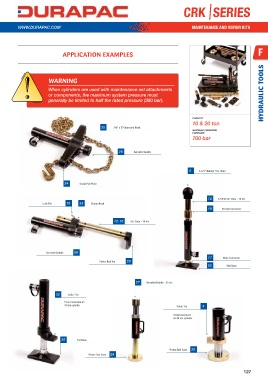

           ?                 aPPliCatiOn eXamPles                                                                   F









            !          WarninG



                       When cylinders are used with maintenance set attachments
                       or components, the maximum system pressure must
                       generally be limited to half the rated pressure (350 bar).                                     HYDRAULIC TOOLS


           i                                  35   3/8" x 5' Chain and Hook           CAPACITY
                                                                                      10 & 20 ton

                                                                                      MAXIMUM OPERATING
                                                                                      PRESSURE
                                                                                      700 bar


                                                      26    Serrated Saddle



                                                                                     2   3-1/4" Rubber Flex Head

                              34    Chain Pull Plate


                                                                                             12   127mm Ext. Tube - 10 ton
                    Lock Pin   19   33    Clamp Head
                                                                                             18     Female Connector


                                                    12-15  Ext. Tube - 10 ton







                      Serrated Saddle  26
                                                                                             17     Male Connector
                                             Piston Rod Toe  20
                                                                                             25       Flat Base



                                                             27   Serrated Saddle - 20 ton

                          32   Collar Toe
                              5 ton maximum on
                              10 ton cylinder                                   Collar Toe   3

                                                                              10 ton maximum
                                                                              on 20 ton cylinder




                            25     Flat Base
                                                                            Piston Rod Base  28
                                        Piston Rod Base  28


                                                                                                             127
