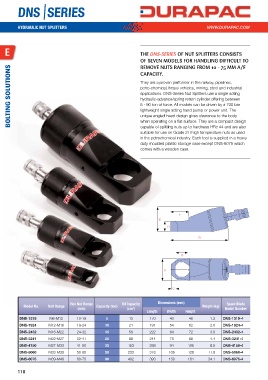

Page 118 - Durapac_2016
P. 118

DNS |SERIES




         HYDRAULIC NUT SPLITTERS                                                             WWW.DURAPAC.COM




   e                                                           thE DnS-SerIeS of Nut spLittErs coNsists

                                                               of sEvEN moDELs for haNDLiNG DifficuLt to
                                                               rEmovE Nuts raNGiNG from 10 – 75 mm a/f
      BOLTING SOLUTIONS                                        They are a proven performer in the railway, pipelines,
                                                               capacity.


                                                               petro-chemical, heavy vehicles, mining, steel and industrial
                                                               applications. DNS-Series Nut Splitters use a single acting
                                                               hydraulic-advance/spring return cylinder offering between
                                                               5 - 90 ton of force. All models can be driven by a 700 bar
                                                               lightweight single acting hand pump or power unit. The
                                                               unique angled-head design gives clearance to the body
                                                               when operating on a flat surface. They are a compact design
                                                               capable of splitting nuts up to hardness HRc 44 and are also
                                                               suitable for use on Grade 2H high temperature nuts as used
                                                               in the petrochemical industry. Each tool is supplied in a heavy
                                                               duty moulded plastic storage case except DNS-6075 which
                                                               comes with a wooden case.
















                                                                                 F
                                                                        E
                                                                           D

                                                                                         G



                                                                                  B


                                                                          A



                                                                              C



                                Hex Nut Range          Oil Capacity    Dimensions (mm)                Spare Blade
            Model No.  Bolt Range           Capacity (ton)                                 Weight (kg)
                                   (mm)                  (cm )                                       Model Number
                                                            3
                                                                  Length   Width   Height
          DNS-1319     M6-M12      10-19        5         13        170      40      48        1.2   DNS-1319-4
          DNS-1924     M12-M16     19-24        10        21        191      54      62        2.0   DNS-1924-4
          DNS-2432     M16-M22     24-32        15        58        222      64      72        3.0   DNS-2432-4
          DNS-3241     M22-M27     32-41        20        88        244      75      88        4.4   DNS-3241-4
          DNS-4150     M27-M33     41-50        35        153       288      94      105       8.5   DNS-4150-4
          DNS-5060     M33-M39     50-60        50        233       318      106     128      11.8   DNS-5060-4
          DNS-6075     M39-M48     60-75        90        492       393      156     181      34.1   DNS-6075-4
