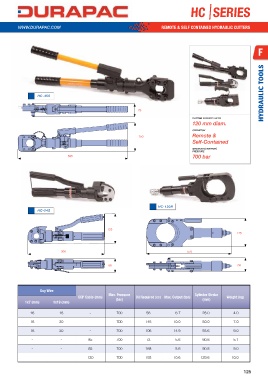

HC |SERIES




         WWW.DURAPAC.COM                                                 REMOTE & SELF CONTAINED HYDRAULIC CUTTERS




                                                                                                                    F



                                                                                                                      HYDRAULIC TOOLS






                  hC-45S


                                                              78
                                                                                      CUTTING CAPACITY UP TO
                                                                                      120 mm diam.

                                                                                      OPERATION
                                                               150                    Remote &
                                                                                      Self-Contained

                                                                                      MAXIMUM OPERATING
                                                                                      PRESSURE
                               695                                                    700 bar












                                                                       hC-120R
                  hC-24S



                                                 125
                                                                                                          175



                            360                                                     570


                                                 65                                                        88





 Wire Rope         Guy Wire
 Soft Steel Bar   Reinforcing   Copper Cable   Aluminium   Max. Pressure                Cylinder Stroke
 Model No.  Operation  ACSR (mm)    CCP Cable (mm)           Oil Required (cc) Max. Output (ton)      Weight (kg)
 6x7   6x12   6x19   (mm)  Rod (mm)  (mm)  Cable (mm)  (bar)                               (mm)
 (mm)  (mm)  (mm)  1x7 (mm)  1x19 (mm)
 HC-24S  Self-contained  18   24   24   20   16  24  24  24  16  16  -  700  56  6.7       28.0          4.0
 HC-45S  Self-contained  22  25  25  20  16  45  45  45  16  20  -  700   145  10.0        50.0          7.0

 HC-55R  Remote  25   30   30   22   19   50   50   50  16   20   -  700   106   14.9      55.6          9.0

 HC-85R  Remote  -  -  -  -  -  85   85   -  -  -  85   700       73           5.6         90.8          5.1
 HC-85S  Self-contained  -  -  -  -  -  85   85   -  -  -  85   700   168      5.6         90.8          9.0
 HC-120R  Remote  -  -  -  -  -  120   120   -  -  -  120   700   193         10.6        129.6         10.0


                                                                                                             125
