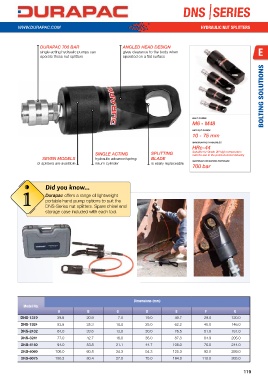

DNS |SERIES




         WWW.DURAPAC.COM                                                                  HYDRAULIC NUT SPLITTERS



                   DURAPAC 700 BAR                      ANGLED hEAD DESIGN
                   single acting hydraulic pumps can    gives clearance to the body when                            e
                   operate these nut splitters          operated on a flat surface








           ?                                                                                                          BOLTING SOLUTIONS





                                                                                      BOLT RANGE
                                                                                      M6 - M48

                                                                                      hEX NUT RANGE
                                                                                      10 - 75 mm
            !                              SINGLE ACTING            SPLITTING         MAXIMUM NUT hARDNESS
                                                                                      hRc-44
                                                                                      Suitable for Grade 2h high temperature
                                                                                      nuts for use in the petrochemical industry
                    SEvEN MODELS
                                                                    is easily replaceable
                                           return cylinder
                  of splitters are available  hydraulic advance/spring    BLADE       MAXIMUM OPERATING PRESSURE
                                                                                      700 bar
           i         Did you know...


                     Durapac offers a range of lightweight
                     portable hand pump options to suit the
                     DNS-Series nut splitters. Spare chisel and
                     storage case included with each tool.























                                                            Dimensions (mm)
           Model No.
                           A            B            C            D            E            F            G
          DNS-1319         39.8         20.9          7.0         19.0         49.7         29.0        120.0
          DNS-1924         53.8         25.3         10.0         25.0         62.2         40.0        146.0
          DNS-2432         64.0         33.6         13.0         30.0         76.5         51.8        181.0
          DNS-3241         77.0         42.7         16.0         36.0         87.3         64.9        205.0
          DNS-4150         94.0         53.8         21.1         44.7        108.0         76.0        244.0
          DNS-5060        106.0         60.8         24.3         54.3        125.3         92.0        289.0
          DNS-6075        156.2         80.4         27.0         75.0        184.0        110.0        365.0

                                                                                                             119
