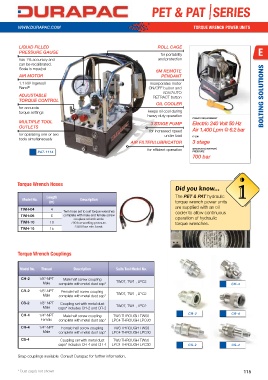

P. 115

PET & PAT |SERIES




         WWW.DURAPAC.COM                                                               TORQUE WRENCH POWER UNITS



          LIqUID FILLED                                                ROLL CAGE
          PRESSURE GAUGE                                                for portability                             e
          has 1% accuracy and                                          and protection
          can be recalibrated.
          Scale is mpa/psi
                                                                      6M REMOTE
          AIR MOTOR                                                      PENDANT
          1.1 kW Ingersoll                                          incorporates motor
          Rand ®                                                   ON/OFF button and
                                                                         ADV/AUTO
          ADJUSTABLE                                                 RETRACT button                        ?          BOLTING SOLUTIONS
          TORqUE CONTROL
                                                                      OIL COOLER
          for accurate
          torque settings                                          keeps oil cool during
                                                                   heavy duty operation
                                                                                      POWER REqUIREMENT
                                                                                      CAPACITY
          MULTIPLE TOOL                                             3 STAGE PUMP      Electric 240 volt 50 hz
                                                                                      X-XXX ton
          OUTLETS
                                                                   for increased speed   Air 1,400 Lpm @ 6.2 bar
                                                                                      STROkE
          for operating one or two                                        under load  XX-XXX mm
          tools simultaneously                                                        FLOW
                                                           AIR FILTER/LUBRICATOR      3 stage              !
                                                                                      MAXIMUM OPERATING
                                                                                      PRESSURE
                                                                   for efficient operation  MAXIMUM OPERATING
                                                                                      10 000 psi
                  PAT-1114                                                            PRESSURE
                                                                                      700 bar

         Torque Wrench Hoses                                                                               i
                                                                               Did you know...

                      Length                                                   The PET & PAT hydraulic
           Model No.                 Description
                       (m)                                                     torque wrench power units
                                                                               are supplied with an oil
          TWH-04        4
                             Twin hose set to suit torque wrenches             cooler to allow continuous
          TWH-06        6    complete with male and female screw
                                  couplers at both ends.                       operation of hydraulic
          TWH-10       10        700 bar working pressure.                     torque wrenches.
                                  2,800 bar min. burst.
          TWH-15       15



         Torque Wrench Couplings



          Model No.  Thread       Description        Suits Tool Model No.

          CH-2    1/8"-NPT   Male half screw coupling
                    Male   complete with metal dust cap*  TW07, TW1 , LPC2           Ch-2               Ch-4
          CR-2    1/8"-NPT   Female half screw coupling
                    Male   complete with metal dust cap*  TW07, TW1 , LPC2
          CS-2    1/8"-NPT   Coupling set with metal dust
                    Male   caps* includes CH-2 and CR-2  TW07, TW1 , LPC2

          CH-4    1/4"-NPT   Male half screw coupling   TW3 THROUGH TW50             CR-2               CR-4
                   Female  complete with metal dust cap*  LPC4 THROUGH LPC30
          CR-4    1/4"-NPT   Female half screw coupling   TW3 THROUGH TW50
                    Male   complete with metal dust cap*  LPC4 THROUGH LPC30
          CS-4              Coupling set with metal dust   TW3 THROUGH TW50
                           caps* includes CH-4 and CR-4  LPC4 THROUGH LPC30          CS-2               CS-4

         Snap couplings available. Consult Durapac for further information.


         * Dust cap/s not shown                                                                              115
