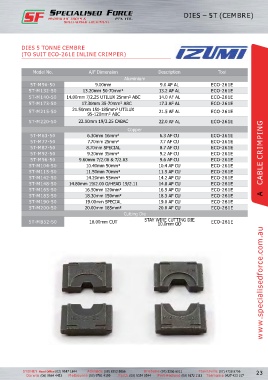

Page 33 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIES – 5T (CEMBRE)

DIES 5 TONNE CEMBRE
(TO SUIT ECO-261E INLINE CRIMPER)

Model No. A/F Dimension Description Tool
Aluminium
5T-M90-50 9.00mm 9.0 AF AL ECO-261E
5T-M132-50 13.20mm 50-70mm² 13.2 AF AL ECO-261E
5T-M140-50 14.00mm 7/2.25 UTILUX 25mm² ABC 14.0 AF AL ECO-261E
5T-M173-50 17.30mm 35-70mm² ABC 17.3 AF AL ECO-261E
5T-M215-50 21.50mm 150-185mm² UTILUX 21.5 AF AL ECO-261E
95-120mm² ABC
5T-M220-50 22.00mm 19/3.25 CABAC 22.0 AF AL ECO-261E
Copper
5T-M63-50 6.30mm 16mm² 6.3 AF CU ECO-261E
5T-M77-50 7.70mm 25mm² 7.7 AF CU ECO-261E
5T-M87-50 8.70mm SPECIAL 8.7 AF CU ECO-261E
5T-M92-50 9.20mm 35mm² 9.2 AF CU ECO-261E
5T-M96-50 9.60mm 7/2.00 & 7/2.03 9.6 AF CU ECO-261E A CABLE CRIMPING
5T-M104-50 10.40mm 50mm² 10.4 AF CU ECO-261E
5T-M115-50 11.50mm 70mm² 11.5 AF CU ECO-261E
5T-M142-50 14.20mm 95mm² 14.2 AF CU ECO-261E
5T-M148-50 14.80mm 19/2.00 O/HEAD 19/2.11 14.8 AF CU ECO-261E
5T-M165-50 16.50mm 120mm² 16.5 AF CU ECO-261E
5T-M183-50 18.30mm 150mm² 18.3 AF CU ECO-261E
5T-M190-50 19.00mm SPECIAL 19.0 AF CU ECO-261E
5T-M200-50 20.00mm 185mm² 20.0 AF CU ECO-261E
Cutting Die
5T-MB52-50 10.00mm CUT STAY WIRE CUTTING DIE ECO-261E www.specialisedforce.com.au
10.0mm OD
