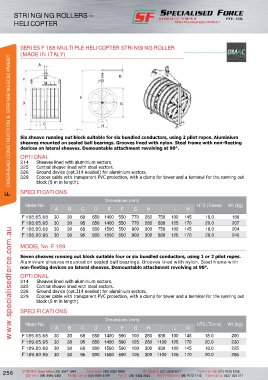

Page 266 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 266

STRINGING ROLLERS –
       HELICOPTER





          SERIES F 188 MULTIPLE HELICOPTER STRINGING ROLLER
          (MADE IN ITALY)
      F    OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
                  A

                                                      B
           F
                     M L L


                                    E
           D                                          G




                    C                         H
                     I
          Six sheave running out block suitable for six bundled conductors, using 2 pilot ropes. Aluminium
          sheaves mounted on sealed ball bearings. Grooves lined with nylon. Steel frame with non-fleeting
          devices on lateral sheaves. Demountable attachment revolving at 90°.
          OPTIONAL
          314    Sheaves lined with aluminium sectors.
          325    Central sheave lined with steel sectors.
          326    Ground device (opt.314 needed) for aluminium sectors.
          329      Copper cable with transparent PVC protection, with a clamp for tower and a terminal for the running out
                 block (6 m in length).
          SPECIFICATIONS

                                               Dimensions (mm)
            Model No.                                                                    UTS (Tonne)  Wt (kg)
                         A     B     C     D     E     F    G     H     I     L     M
           F 188.65.68   30    30    68   650  1400   550   770  280   750   100   145      18.0        180
           F 188.65.95   30    30    95   650  1400   550   770  280   880   125   170      20.0        207
           F 188.80.68   30    30    68   800  1500   550   900  300   750   100   145      18.0        204
      www.specialisedforce.com.au
           F 188.80.95   30    30    95   800  1550   550   900  300   880   125   170      20.0        240

          MODEL No. F 189

          Seven sheaves running out block suitable four or six bundled conductors, using 1 or 2 pilot ropes.
          Aluminium sheaves mounted on sealed ball bearings. Grooves lined with nylon. Steel frame with
          non-fleeting devices on lateral sheaves. Demountable attachment revolving at 90°.
          OPTIONAL
          314    Sheaves lined with aluminium sectors.
          325    Central sheave lined with steel sectors.
          326    Ground device (opt.314 needed) for aluminium sectors.
          329      Copper cable with transparent PVC protection, with a clamp for tower and a terminal for the running out
                 block (6 m in length).
          SPECIFICATIONS

                                               Dimensions (mm)
            Model No.                                                                   UTS (Tonne)   Wt (kg)
                         A     B     C     D     E     F    G     H     I     L     M
           F 189.65.68   30    30    68   650  1400   590   100  280   930   100   145      18.0        200
           F 189.65.95   30    30    95   650  1400   590   125  280   1100  125   170      20.0        230
           F 189.80.68   30    30    68   800  1560   590   100  300   930   100   145      18.0        225
           F 189.80.95   30    30    95   800  1560   590   125  300   1100  125   170      20.0        265
