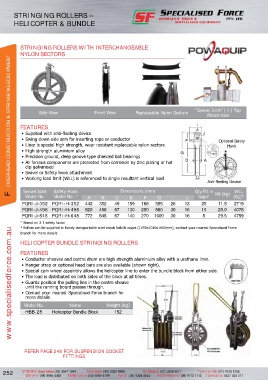

STRINGING ROLLERS –
HELICOPTER & BUNDLE

STRINGING ROLLERS WITH INTERCHANGEABLE
NYLON SECTORS
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

“Swivel Joint” (-J-) Top
Side View Front View Replaceable Nylon Sectors
Attachment
FEATURES I
• Supplied with anti-fleeting device J
• Swing down side arm for inserting rope or conductor F Optional Safety
• Liner is special high strength, wear resistant replaceable nylon sectors Hook
• High strength aluminium alloy G
• Precision ground, deep groove type shielded ball bearings
• All ferrous components are protected from corrosion by zinc plating or hot B A
dip galvanised
• Swivel or Safety hook attachment
• Working load limit (WLL) is referenced to single resultant vertical load C
Anti-fleeting Device
Swivel Joint Safety Hook Dimensions (mm) Qty Fit in Wt (kg) WLL
Model No. Model No. ¹ A B C E F G I J Cage¹ (kg)*
PQRI-J-352 PQRI-H-352 442 352 49 159 168 585 26 13 25 11.8 2719
PQRI-J-496 PQRI-H-496 620 496 67 130 280 860 30 16 10 25.0 4078
PQRI-J-648 PQRI-H-648 772 648 67 140 270 1000 30 16 5 29.5 4759
* Based on 3:1 safety factor
¹ Rollers can be supplied in handy transportable steel mesh forklift cages (1090x1010x1000mm), contact your nearest Specialised Force
www.specialisedforce.com.au
branch for more details
HELICOPTER BUNDLE STRINGING ROLLERS

FEATURES
• Conductor sheaves and centre drum are high strength aluminium alloy with a urethane liner.
• Hanger strap or optional head bars are also available (shown right).
• Special cam wheel assembly allows the helicopter line to enter the bundle block from either side.
• The load is distributed on both sides of the block at all times.
• Guards position the pulling line in the centre sheave
until the running board passes through.
• Contact your nearest Specialised Force branch for
more details
Model No. Name Weight (kg)
HBB-28 Helicopter Bundle Block 152

REFER PAGE 248 FOR SUSPENSION SOCKET
FITTINGS
